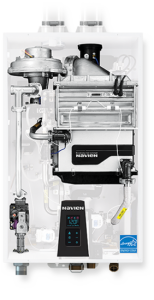

Our standard ultra condensing tankless technology with the industry’s top rated unit for energy efficiency
Series: LX Series
Configuration: Multi-position
Height: 33-inches High
Fan Motor: Variable-Speed Premium ECM Fan Motor with Two-Stage Burner
Parts Warranty: 10-Year Parts Limited Warranty *
Other Warranty: 20-Year Heat Exchanger Limited Warranty
Capacity: 60 – 120 MBH Input
Efficiency Rating: 80% AFUE
* Must be registered online within 90 days of installation. Otherwise the parts warranty reverts to a 5-year parts limited warranty.
Series: LX Series
Configuration: Multi-position
Height: 33-inches High
Fan Motor: PSC Fan Motor with Two-Stage Burner
Parts Warranty: 10-Year Parts Limited Warranty *
Other Warranty: 20-Year Heat Exchanger Limited Warranty
Capacity: 60 – 120 MBH Input
Efficiency Rating: 80% AFUE
* Must be registered online within 90 days of installation. Otherwise the parts warranty reverts to a 5-year parts limited warranty.
Series: LX Series
Configuration: Multi-position
Height: 33-inches High
Fan Motor: Standard ECM Fan Motor with Single-Stage Burner
Parts Warranty: 10-Year Parts Limited Warranty *
Other Warranty: 20-Year Heat Exchanger Limited Warranty
Capacity: 60 – 120 MBH Input
Efficiency Rating: 80% AFUE
* Must be registered online within 90 days of installation. Otherwise the parts warranty reverts to a 5-year parts limited warranty.
Series: Latitude™ Series
Configuration: Multi-position
Height: 33-inches High
Fan Motor: PSC Fan Motor with Single-Stage Burner
Parts Warranty: 10-Year Parts Limited Warranty *
Other Warranty: 20-Year Heat Exchanger Limited Warranty
Capacity: 40 – 130 MBH
Efficiency Rating: 80% AFUE
* Must be registered online within 90 days of installation. Otherwise the parts warranty reverts to a 5-year parts limited warranty.
Homeowners receive up to $1,600* PLUS a $200 bonus rebate when they purchase the Ultimate Comfort System™, OR low monthly payment financing when they purchase and install qualifying Lennox® product between March 8, 2021 – June 11, 2021. Offer valid in the US and Canada.
Rebate Disclaimer: Rebate requires purchase and installation of qualifying items and submission of a completed online rebate form and proof of purchase to lennoxconsumerrebates.ca no later than July 2, 2021. Rebate is paid in the form of a Lennox Visa* Prepaid card. Card is subject to terms and conditions referenced on card and expires 12 months after the date of issue. Use your Visa prepaid card anywhere Visa cards are accepted worldwide. Card is issued by Peoples Trust Company pursuant to a licence from Visa Int. *Trademark of Visa International Service Association and used under licence by Peoples Trust Company. Your use of the prepaid card is governed by the Cardholder Agreement, and some fees may apply. This is not a gift card. Please note that prepaid cards are subject to expiration, so pay close attention to the expiration date of the card.
Financing Disclaimer: The 6 month deferral financing is available to well qualified buyers, on approved credit, and applies to qualifying items purchased between March 8, 2021 and June 11, 2021 No down payment required. You may prepay your account at any time without penalty. Financing is subject to credit requirements and satisfactory completion of finance documents. Any finance terms advertised are estimates only. Monthly payments are deferred for 6 months. Contracts will be extended accordingly. Interest charges (if any) will not accrue during the first 6 months of the contract. After 6 months, interest (if any) starts to accrue and the purchaser will repay principal and interest (if any) monthly over the term of the contract, but not until 6 months after the contract date. Conditions apply. See promotional guidelines for complete terms and conditions.
By: Air Flow Heating & Cooling Ltd.
SNAP is the fast, flexible, easy way to pay for your heating, cooling and indoor air quality needs without having to wait. It’s the consumer-friendly financial program endorsed by your local dealer. Why go to the bank when you can simply click on the pre-approved logo below and complete our secure credit application. With SNAP, credit decisions take just minutes!
There’s no need to putting off a more Energy Efficient, Cost Effective home comfort system. We make it simple – start saving money now – CLICK below to get started!
| Product overview and features | |
|---|---|
| Heat Capacity(Input) | Min: 15,000 Btu/hr
Max: 150,000 Btu/hr |
| Energy Factor (DOE) | Natural Gas 0.96 Propane Gas 0.97 |
| Dimensions | (W x H x D ) 17″x 28″x 14″ |
| Weight | 67 lbs |
| Installation Type | Indoor /Outdoor Wall-Hung |
| Venting Type | Direct Vent |
| Ignition | Electronic Ignition |
| Flow Rate (70° / 50° Temperature Rise) | 5.5 / 7.7 gpm (20.8 / 29.2 lpm) |
| Water Pressure ( min-max) | 15 – 150 PSI |
| Gas Supply Pressure (from source:min-max) |
Natural Gas 6.0″W.C. ~ 10.5″W.C.
Propane Gas 9.0″W.C. ~ 13.5″W.C. |
| Minimum Flow Rate to activate Water Heater |
0.5 GPM |
| Connection Sizes | Cold Water Inlet 3/4″ NPTHot Water Outlet 3/4″ NPTGas Inlet 3/4″ NPT |
| Product overview and features | |
|---|---|
| Heat Capacity(Input) | Min: 17,000 Btu/hr
Max: 180,000 Btu/hr |
| Energy Factor (DOE) | Natural Gas 0.95 Propane Gas 0.97 |
Dimensions | (W x H x D ) 17″x 28″x 15″ |
| Weight | 77 lbs |
| Installation Type | Indoor /Outdoor Wall-Hung |
| Venting Type | Direct Vent |
| Ignition | Electronic Ignition |
| Water Pressure ( min-max) | 15 – 150 PSI |
| Gas Supply Pressure (from source:min-max) |
Natural Gas 5.0″W.C. ~ 10.5″W.C.
Propane Gas 8.0″W.C. ~ 13.5″W.C. |
| Minimum Flow Rate to activate Water Heater |
0.5 GPM |
| Connection Sizes | Cold Water Inlet 3/4″ NPT Hot Water Outlet 3/4″ NPT Gas Inlet 3/4″ NPT |
To familiarize yourself with the equipment used in typical HVAC projects, here are definitions of common terms.
Annual Fuel Utilization Efficiency. A measure of a furnace’s heating efficiency. The higher the AFUE%, the more efficient the product. The government’s established minimum AFUE rating for non-weatherized gas furnaces vented through a chimney is now 81%.
: The portion of the central air conditioning or heat pump system that moves heated or cooled air throughout a home’s ductwork. In some systems a furnace handles this function.
: An outdoor temperature, usually between 30℉ and 45℉, at which a heat pump’s output exactly equals the heating needs of the home. Below the balance point, supplementary electric resistance heat is needed to maintain indoor comfort.
: British thermal unit. The amount of heat required to raise the temperature of one pound of water (about one pint) by one degree F.
: The pump that moves the refrigerant from the indoor evaporator coil to the outdoor condensing unit and back to the evaporator. The compressor functions as the heart of the system, because it circulates the refrigerant in a loop.
: The portion of a central air conditioning system that is located outside the home and functions as a heat transfer point for collecting heat from and dispelling heat to the outside air.
: A network of refrigerant-filled tubes where heat leaves the hot refrigerant vapor. The vapor then condenses into a liquid capable of absorbing more heat.
: The portion of a heat pump or central air conditioning system that is located in the home and functions as the heat transfer point for warming or cooling indoor air.
: An air conditioner that contains a valve that allows it to alternate between heating and cooling.
: A body of air or liquid from which heat is collected. With Coleman® heat pumps, the air outside the home is used as the heat source during the heating cycle.
: Heating Seasonal Performance Factor. A measure of a heat pump’s heating efficiency. The higher the HSPF, the more efficient the product. There is no government established minimum HSPF rating for heat pumps.
: Seasonal Energy Efficiency Ratio. A measure of an air conditioner’s cooling efficiency. The higher the SEER, the more efficient the product.
: A year-round heating and air conditioning system that has all of the components completely encased in one unit outside the home.
: A heat pump or central air conditioning system with components located both inside and outside the home. The most common design for home use.
: The auxiliary or emergency heat, usually electrical resistance heat, provided at temperatures below a heat pump’s balance point.
You might think of your heating and cooling system as just a “BOX” that can be turned “ON” and “OFF” in order to control your home temperature, but your system is a lot more than that. It has an impact on the air that you breathe, the moisture and mold growth, the amount of energy that you use, the un necessary expenses that you carry, and most importantly, on your and your family’s health.
Just like your car, your home comfort system needs routine maintenance to keep it running at its best. Without regular maintenance, heating and cooling systems waste energy and are ore likely to break down. With the proper attention however, they can they can keep you comfortable year round. A system which is not running in top shape, is one that is costing you money every month.
Here is a list of tips for those who want to know what their system needs for best possible performance
During very high ambient temperature (above 30 C), air conditioning unit are
Not working with design temperature, because most of them are sized on an
ambient of 26 ℃.
We advise you not to set A/C units to work below ℃, because it could lead to problems. If you do so to speed up cooling, it could lead the evaporator coil to freeze-up during cooler ambient temperature.
If the A/C unit is too large, there will be a problem, because it may not cool uniformly or provide proper dehumidification.
Set the fan on low speed in humid weather to remove moisture from the air, which will make it feel cooler.
Clear the furniture away from air conditioning vents.
Weather-strip door and windows.
Keep windows closed and draperies, blinds, and shades drown.
Check the air filter once a month and clean or replace them when necessary, because dusty filters reduce air flow and unit will consume excess energy.
Clear grass, shrubs, leaves and other obstruction from the area around the outside of condensing unit. It must have unobstructed air flow all around to dissipate the heat that is being removed from inside.
The axle should be lubricated, and blades cleaned
The fan belt should be adjusted so it deflects no more than an inch when pressed
While thermostats rarely fail, they can degrade over time. Faulty thermostats can send faulty signals to the system thinking the room is warmer or colder than it really is.
Houses with forced-air furnaces have an air filter to keep it and its duct work clean. This filter sits in between the main return duct and the furnace cabinet at the blower side. This filter should be kept clean all year round on heating and cooling seasons.
Media filters are made of deeply pleated, paper-like material, and media particles.
Media filter can cover up to 75 square feet when stretched out. This increased area of filtration will increase the life of the filter.
Choose a filter that matches your blower capacity.
Before calling for service, check the following:
Under the Montreal Protocol, developed nations are obligated to achieve a certain percentage of progress toward the total phase out of HCFC’s by certain dates.
These nations use the cap as a baseline to measure their progress toward achieving the percentage goals.
HCFC Phase out Schedule
When compare the Scroll Compressor to the Piston one, the scroll offers several significant advantages:
1- Scroll Compressor is simple. It has fewer parts to compress the gas- two parts compare to
Fifteen parts in a piston compressor.
2- Scroll Compressor is quieter. Because there is a few moving parts in scroll, this compressor
is quiet and because the compression is continuous, there is no pulsation and valve noise.
3- Scroll Compressor is efficient. Because of the type of operation, scroll compressor has less
heat transfer between suction and discharge gas. This, plus more detailed factors make
scroll 10-15% more efficient than piston compressor.
Prepared by Air Flow Heating & Cooling Ltd. | Copyrighted content, see Terms of Use policy
here
Any other questions not provided here, Call us at:
905-507-2665 or E-Mail us at:
info@air-flow.ca
Systems 9RLFW1, 12RLFW1 – ENERGY STAR® Qualified
Stylish, slim and elegant, these popular wall mounted units are designed for single rooms. Indoor units have a clean, aesthetic design and are small but mighty and shorter in length than competing units, helping them blend into any room. 9RLFW1 and 12RLFW1 are Energy Star qualified heat pumps, meaning they save you money on your utility bill and provide both heating and cooling.
System 18RLF, 24RLF – ENERGY STAR® Qualified
This category of equipment is ideal for medium spaces where spot cooling or heating is required. Residential applications including sunrooms and additions are made easier with these air conditioners and heat pumps. Do you have a warm spot in your home? Our mini-splits can provide extra heating or cooling capacity for those hard to reach areas. Commercially, their size makes them ideal for small to medium offices, providing individual temperature control.
Inverter Technology
Through advanced technology, Inverter air conditioners are more economical to operate and quieter to run than conventional units. They are smoother and more stable in operation, and reach the desired temperature more quickly than conventional air conditioners. The Inverter component allows the outdoor unit to vary its speed and output to match the required capacity of the indoor unit. Thus, the Inverter model can achieve 30% more operating efficiency than conventional models and therefore, is much less expensive to run.
ENERGY STAR® Qualified
Since mini splits have little to no ducting, they forego those energy losses typically associated central forced-air systems. Duct losses can easily account for more than 30% of energy consumption, especially if the ducts are not sealed tight or in an unconditioned space such as an attic or crawlspace. With ratings as high as 23.0-SEER (Seasonal Energy Efficiency Ratio), these systems are among the highest rated efficiency equipment available anywhere!
Feel better with a whole home air cleaner that works year around.
Matches with your air handler to minimize energy use.
Easy to maintain for maximum effectiveness 365 days a year.
Most effective whole home air cleaner in its class.
Works with your central air ductwork for whole home comfort. Removes allergens and mold particles by 99%. Removes indoor virus-sized particles by 80%. Reduces airborne dust by 94%.
MERV 16 offers one of the highest efficiency ratings.
Easy to maintain for maximum effectiveness 365 days a year.
Integrates with the air handler for whole house comfort.
Keeps you more comfortable so you run your system less.
Engineered for long-term dependability.
Integrates with the air handler for whole house comfort.
Keeps you more comfortable so you run your system less.
Engineered for long-term dependability.
What is a firebox anyway? Do I need one?
A Monessen vent free firebox is the perfect way to display and operate your Monessen vent free log set. While our log sets can be utilized in an existing approved wood burning fireplace (converted with a gas line), if your home does not already have an existing fireplace, a vent free firebox is an economical way to add a fireplace to your home. Installed in either your wall or a free-standing cabinet, a vent free firebox is simply the metal combustion chamber of a traditional fireplace system, without the log set and engine. You then add the vent free log set (with engine) of your choice to complete it.
Fireboxes allow you to custom design your own fireplace
Seem complicated? Why not just buy a system? A system is a great option to have everything you need all in one easy choice but sometimes you may not like the log or liner options that comes with a system. Some Monessen vent free systems give you the option of different log sets, but with a firebox, you can choose virtually any log set your heart desires. It’s like custom designing your own fireplace!
Enjoy the fireplace you’ve always wanted, expansive views and all. Combined with a Monessen vent free log set, the Exacta firebox provides warmth and ambiance to practically anyone, anywhere. The Exacta delivers maximum airflow, efficiently adding heat to your home, while the zero clearance design gives you flexibility, and helps save installation dollars.
Available Sizes:
36″ & 42″
The GRUF/GCUF series fireboxes provide the option to choose a louvered design or a radiant, clean face design. Choose from a selection of firebrick options and accessories for a fireplace perfectly suited to your tastes.
Available Sizes:
32″ & 36″ & 42″
The Lo-Rider Designer vent free firebox is available as a see-through model, adding style and warmth to multiple rooms while maintaining a contemporary feel. The louverless design provides a clean exterior for an ultra sleek look.
For a true masonry look, the Lo-Rider Series features a low profile hearth, so the firebox appears to nearly rest on the floor, providing the tallest fireplace opening and a truly expansive viewing area.
Available Sizes:
32″ & 36″
The Magnum firebox series offers Monessen’s trademark angled firebox design coupled with a deep box and tall opening for maximum heating capacity. Finish your fireplace right up to the firebox with the material of your choice and add the log set you love for a perfect custom look.
Available Sizes:
36″ & 42″
You love that big wood fireplace in the great room, but it’s getting a little rough around the edges. And maybe all the time chopping and hauling wood could be better spent doing something you really love. But you don’t want to give up your heat or the beauty of fire and you really don’t want to spend a ton of money on a new fireplace. What to do? A vent free gas insert is a great option. A gas insert is a complete, compact system that fits right into your existing fireplace structure. A vent free gas insert means there is no costly pipe to run or maintain.
The Solstice vent free gas insert quickly and easily turns an old, wasteful fireplace into a beautiful, highly efficient heat source. Coming from the leader in vent free technology, you can expect the gorgeous Solstice to provide excellent heating efficiency without the high cost of extensive renovations or construction.
Retain the look of a traditional hearth with realistic log sets or switch it up with flames rising through modern fireglass. The Solstice is what you make it, fitting into your home and family with ease.
What is a Vent Free System ?
We know in this industry there is a lot of lingo that isn’t used in your world so we want to help you understand your options and make the best choice for your home. Simply stated, a Vent Free System is a complete fireplace-a firebox (the metal shell), burner (where the gas goes) and log set (the pretty part we all ooh and aah over), with no venting or ducting required.
Just drop it into a decorative cabinet, hook it to your gas line and in about two hours, voila! you have a fireplace. It can’t be that simple, you think. Surely there is a catch. Nope, no catch-it really is that simple. For a home with no existing fireplace but with a gas line (or the ability to add one), it really is that easy.
Systems can also be installed in a wall as well, if you prefer that look. That takes a little longer and requires a bit more effort, but a vent free system is still an ideal choice-no costly venting to run.
A Monessen vent free system can be installed on an interior wall or below grade structures where a vented system would be expensive, or impossible, to install. Look below to find a Monessen vent free system that fits your specific needs.
The Aria vent free gas fireplace is designed to add big, bold and beautiful flames to spaces requiring generous, efficient heat. A clean look lets the flames take center stage while complementing decor. Style reigns supreme as you select from a variety of options and accessories to fit your tastes. The Aria warmly welcomes you home.
Expansive views gives a glimpse into the 37,000 BTUs that add comfort and ambiance to your home. With the freedom to install almost anywhere with a sleek finish, the Aria is an amenity almost any room can afford.
Available Sizes:
32″ & 36″
The Artisan see-through brings the ambiance of a fireplace to both indoors and out. This vent free gas fireplace is one of a kind, forever changing how you look at hearths. The Artisan see-through enhances your fireside experience, linking the interior and exterior of your home with clean, contemporary lines and gorgeous flames.
Choose how you want to enjoy the hearth. The exclusive heat management system gives you the option to cozy on up to the warmth or to direct it to the outdoors, offering unmatched views without breaking a sweat. The final touches are the shimmering fireglass and multicolored LED lighting that transform this sleek fireplace into an eye-catching show.
Available Sizes:
42″
The Artisan brings the ambiance of a fireplace to your space. This vent free gas fireplace is one of a kind, forever changing how you look at hearths. Adding modern heat to your home is simple and effective with no venting required. The Artisan enhances your fireside experience with clean, contemporary lines and gorgeous flames.
Heat can be beautiful. The sleek look of this linear fireplace can be added nearly anywhere, warming your home with 99.9 percent efficiency. The final touches are the shimmering fireglass and accent lighting that transform this sleek fireplace into an eye-catching show.
Available Sizes:
42″ & 60″
Compact and versatile, the Symphony vent free gas fireplace heats smaller spaces beautifully and affordably. This convenient and efficient hearth is a simple choice that’s big on benefits. A slim, clean design with expansive views maximizes enjoyment. It’s never been easier and more economical to heat up your favorite space.
The Symphony’s understated beauty is customized with options and accessories to suit your style. Highlight your decor with traditional logs or contemporary fireglass. An easy installation makes the Symphony a part of your home in no time.
Available Sizes:
24″ & 32″
Monessen offers one of the most diverse lineups of electric fireplaces available, making it easy to find the right look for your home. Enjoy beautiful flames, a customized look, and many added benefits.
The Allusion electric fireplace series embraces modern design by combining linear proportions with a multitude of flame and ember bed LED lighting themes. Additionally, intuitive operation is exemplified by the standard remote and touch controls on the fireplace front.
Adding the traditional look of a fireplace to your home has never been this easy. A detailed masonry-style interior, textured log set and four different flame intensity levels enhance the appeal of the SimpliFire Built-In electric fireplace series. Enjoy the ambiance – with or without the heat. Experience “Fire Made Simple.”
Do you want to create a completely unique look and feel to your contemporary space? With SimpliFire’s four wall-mount electric fireplace options, you’l take any room to the next level, with distinct ambiance and style. Choose from a variety of viewing areas and backlighting.
When you think of a cabinet, you probably think of those square things hanging on the wall in your kitchen, right? A fireplace cabinet is really no different. It’s a pre-made home for your fireplace. Avoid cutting and framing and remodeling your room; use a cabinet instead! Within just a few hours, you too can have the fireplace you’ve always wanted.
Pleasing proportions, solid wood moulding and hand-crafted recessed panels give this birch mantel an elegant nuance of design that is sure to make it the focal point of any room. Available in Dark Walnut (shown) and unfinished.
Wallet friendly and simply styled, our basic cabinets are a budget-conscious way to feature your new Monessen fireplace. Available in Honey Oak, Dark Cherry (shown) and Unfinished.
Wallet friendly and simply styled, our basic cabinets are a budget-conscious way to feature your new Monessen fireplace. Available in Honey Oak (shown), Dark Cherry and Unfinished.
The ENERGY STAR rated NRC98, Noritz’s brand new ultra-high efficient condensing model, demonstrates its ongoing commitment to the green movement by expanding its newest tankless water heater product line: the ecoTOUGH Series of high efficiency, easy-to-install, gas-fired condensing tankless water heaters. Offering a maximum input of 180,000 BTU per hour, the NRC98 Tankless Water Heater is designed to fully meet the domestic hot water needs of northern residences with two bathrooms and sourthern homes with three baths.
| Technical Specifications | |
|---|---|
| Home Size: | Southern climate: 3 baths
Northern climate: 2 baths |
| Outdoor Unit Dimensions: | 24.2″ (H) x 18.3″ (W) x 9.4″ (D) |
| Weight: | 58 lbs. |
| Gas Consumption: | Min. 16,000 btuh Max. 180,000 btuh |
| (NG & LP): | Natural Gas/Propane |
| Capacity Range: | 0.5-9.8 Gal./min. |
| Energy Factor: | 0.92 (NG) 0.94 (LP) |
| Thermal Efficiency: | 93% |
| Temperature Settings: | 100-140°F (In 5°F intervals) (9 Options) |
| Product Specifications | |
|---|---|
| Indoor Unit Dimensions | 27.0″(h) x 18.5″(w) x 12.8″(d) |
| Outdoor Unit Dimensions | 27.0″(h) x 18.5″(w) x 12.8″(d) |
| Weight | 81 lbs. |
| Gas Consumption | Min. 18,000 BTUh, Max 199,900 BTUh |
| NG & LP | Natural Gas / Propane |
| Capacity Range | 0.5 – 9.8 GPM |
| Uniform Energy Factor | 0.96 |
| Product Specifications | |
|---|---|
| Indoor Unit Dimensions | 27.0″ (h) x 18.5″ (w) x 12.8″ (d) |
| Outdoor Unit Dimensions | 27.0″(h) x 18.5″(w) x 12.8″(d) |
| Weight | 81 lbs. |
| Gas Consumption | Min. 18,000 BTUh, Max 199,900 BTUh |
| NG & LP | Natural Gas / Propane |
| Capacity Range | 0.5 – 11.1 GPM |
| Uniform Energy Factor | 0.96 |
Enjoy an endless supply of hot water with the SENSEI™ RU199iN Super High Efficiency Plus condensing tankless water heater from Rinnai. Only the size of a small suitcase, the natural gas RU199iN model is compact, easy-to-install and perfect for indoor locations.
| Manufacturer Trade Model Number – U.S. | RU199iN |
| Product Depth | 11.45 in / (290 mm) |
| Product Height | 31.3 in / (795 mm) |
| Product Width | 18.5 in / (470 mm) |
| Product Weight | 64 lb / (29 kg) |
| Gas Type | Natural Gas |
| Installation Type | Indoor Only |
| Recirculation Capable | Yes |
| Residential Energy Star | Yes |
| Uniform Energy Factor | 0.93 |
| Energy Factor | 0.96 |
| Domestic Hot Water Flow Rate (Maximum) | 11 GPM / (41.6 l/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Enjoy an endless supply of hot water with the SENSEI™ RU160iN Super High Efficiency Plus condensing tankless water heater from Rinnai. Only the size of a small suitcase, the natural gas RU160iN model is compact, easy-to-install and perfect for indoor locations.
| Manufacturer Trade Model Number – U.S. | RU160iN |
| Product Depth | 11.45 in / (290 mm) |
| Product Height | 31.3 in / (795 mm) |
| Product Width | 18.5 in / (470 mm) |
| Product Weight | 62 lb / (28 kg) |
| Gas Type | Natural Gas |
| Installation Type | Indoor Only |
| Recirculation Capable | Yes |
| Residential Energy Star | Yes |
| Uniform Energy Factor | 0.93 |
| Energy Factor | 0.95 |
| Domestic Hot Water Flow Rate (Maximum) | 9 GPM / (34.1 l/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Enjoy an endless supply of hot water with the SENSEI™ RU160iN Super High Efficiency Plus condensing tankless water heater from Rinnai. Only the size of a small suitcase, the natural gas RU160iN model is compact, easy-to-install and perfect for indoor locations.
ENERGY STAR® Qualified with an Energy Factor of 0.95 / Uniform Energy Factor of 0.93
15,000 BTU (Minimum) / 160,000 BTU (Maximum)
| Manufacturer Trade Model Number – U.S. | RU160iN |
| Product Depth | 11.45 in / (290 mm) |
| Product Height | 31.3 in / (795 mm) |
| Product Width | 18.5 in / (470 mm) |
| Product Weight | 62 lb / (28 kg) |
| Gas Type | Natural Gas |
| Installation Type | Indoor Only |
| Recirculation Capable | Yes |
| Residential Energy Star | Yes |
| Uniform Energy Factor | 0.93 |
| Energy Factor | 0.95 |
| Domestic Hot Water Flow Rate (Maximum) | 9 GPM / (34.1 l/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Enjoy an endless supply of hot water with the SENSEI™ RU199iP Super High Efficiency Plus condensing tankless water heater from Rinnai. Only the size of a small suitcase, the propane fueled RU199iP model is compact, easy-to-install and perfect for indoor locations.
| Manufacturer Trade Model Number – U.S. | RU199iP |
| Product Depth | 11.45 in / (290 mm) |
| Product Height | 31.3 in / (795 mm) |
| Product Width | 18.5 in / (470 mm) |
| Product Weight | 64 lb / (29 kg) |
| Gas Type | Propane Gas |
| Installation Type | Indoor Only |
| Recirculation Capable | Yes |
| Residential Energy Star | Yes |
| Uniform Energy Factor | 0.93 |
| Energy Factor | 0.96 |
| Domestic Hot Water Flow Rate (Maximum) | 11 GPM / (41.6 l/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Enjoy an endless supply of hot water with the SENSEI™ RU160iP Super High Efficiency Plus condensing tankless water heater from Rinnai. Only the size of a small suitcase, the propane fueled RU160iP model is compact, easy-to-install and perfect for indoor locations.
| Manufacturer Trade Model Number – U.S. | RU160iP |
| Product Depth | 11.45 in / (290 mm) |
| Product Height | 31.3 in / (795 mm) |
| Product Width | 18.5 in / (470 mm) |
| Product Weight | 62 lb / (28 kg) |
| Gas Type | Propane Gas |
| Installation Type | Indoor Only |
| Recirculation Capable | Yes |
| Residential Energy Star | Yes |
| Uniform Energy Factor | 0.93 |
| Energy Factor | 0.95 |
| Domestic Hot Water Flow Rate (Maximum) | 9 GPM / (34.1 l/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
The ENERGY STAR rated NRC661, Noritz’s newest efficient condensing model with a half inch gas line. Featuring the same energy-saving condensing technology as the rest of the Noritz eco-TOUGH? Series of gas-fired residential tankless water heaters, the NRC661 has an Energy Factor of 0.91 for natural gas and 0.93 for LP. These ratings are nearly 10 points higher than that of a comparably sized, conventional tankless unit, and approximately 30 points higher than a standard, tank-type gas-fired water heater. With a maximum input of 120,000 BTU per hour (BTUh), using a half-inch gas line up to 120 feet in length. A new, more accurate interpretation of the National Fuel Gas Code permits the use of the smaller-diameter gas piping for inputs up to 174,000 BTUh, as long as the water column pressure at the inlet of the unit is a minimum eight inches.
| Technical Specifications | |
|---|---|
| Home Size: |
Southern climate: 2baths Northern climate: 1.5 baths |
| Outdoor Unit Dimensions: | 20.5″ (H) x 13.8″ (W) x 6.7″ (D) |
| Weight: | Indoor: 39 lbs Outdoor: 36 lbs. |
| Gas Consumption: | Min. 15,000 btuh Max. 120,000 btuh |
| (NG & LP): | Natural Gas/Propane |
| Capacity Range: | 0.5-6.6 Gal./min. |
| Energy Factor: | 0.91 (NG) 0.93 (LP) |
| Thermal Efficiency: | 93% |
| Temperature Settings: | 100-140°F (In 5°F intervals) (9 Options) |
Noritz is proud to introduce our most efficient tankless heaters, the next generation in tankless technology-condensing heaters. This innovation utilizes a dual heat exchanger, a fusion of stainless steel and copper heat exchangers. The 100% stainless steel component captures the residual heat from the exhaust temperature to preheat the incoming water before it runs through the main copper heat exchanger. This results in dramatic reduction of carbon dioxide and increases the heater’s efficiency level to over 93%! Another benefit of this technology is lower exhaust temperatures, which means less costly PVC can be used for its venting. A PVC adapter is built into the heater for easy installation. It’s the coolest and greenest tankless water heater available today! This is the highest performing condensing unit on the market today. Some other brand(s) may have a bit higher efficiency rating, but there is a fine balance between the efficiency level and flow rate performance. At Noritz we strive to maximize efficiency levels without sacrifing the hot water output, temperature fluctuations, and water pressure. Comfort and safety is something we do not compromise on.
| Technical Specifications | |
|---|---|
| Home Size: |
Southern climate: 4 baths Northern climate: 3 baths |
| Outdoor Unit Dimensions: | 24.2″ (H) x 18.3″ (W) x 9.4″ (D) |
| Weight: | 66 lbs. |
| Gas Consumption: | Min. 16,000 btuh Max. 199,000 btuh |
| (NG & LP): | Natural Gas/Propane |
| Capacity Range: | 0.5-11.1 Gal./min. |
| Energy Factor: | 0.92 (NG) 0.91 (LP) |
| Thermal Efficiency: | 93% |
| Temperature Settings: | 100-140°F (In 5°F intervals) (9 Options) |
The ENERGY STAR rated NRC83, Noritz’s ecoTOUGH Series of gas fired residential condensing tankless water heaters, is designed for smaller homes and multi-family dwellings. It is available in both indoor (the two-pipe, direct vent NRC83-DV) and outdoor (NRC83-OD) models, the new wall mounted units have an energy factor (EF) of 0.92 for natural gas and 0.94 with liquid propane – approximately 30 points higher than a standard, strage tank-type, gas-fired water heater. New improvements: Precision Combustion Control – More precise burner control, especially during low-fire demand. New intelligent freeze protection software – Improved freeze protection from extreme cold weather. No internal neutralizer – Removed from the unit to help prevent failures from a frozen neutralizer.
| Technical Specifications | |
|---|---|
| Home Size: |
Southern climate: 2 baths Northern climate: 1 baths |
| Indoor Unit Dimensions: | 24.2″ (H) x 18.3″ (W) x 9.4″ (D) |
| Outdoor Unit Dimensions: | 24.2″ (H) x 18.3″ (W) x 9.4″ (D) |
| Weight: | 58 lbs. |
| Gas Consumption: | Min. 16,000 btuh Max. 157,000 btuh |
| (NG & LP): | Natural Gas/Propane |
| Capacity Range: | 0.5-8.3 Gal./min. |
| Energy Factor: | 0.92 (NG) 0.94 (LP) |
| Thermal Efficiency: | 93% |
| Temperature Settings: | 100-140°F (In 5°F intervals) (9 Options) |
| Product Specifications | |
|---|---|
| Ventilation Capacity | Up to 3,800 square feet |
| Energy Recovery | Up to 75% |
| Ozone | No ozone emissions |
| HVAC System Compatibility | All HVAC system types |
| Electrical Rating | 120V-60hz-1ph-1.4 amps |
| Filtration | Washable MERV-4 |
| Optional accessories | Yes (Timers, Digital Wall Controls, Programmable Wall Controls) |
| Warranty | 5-Year Limited Warranty on covered components |
| Product Specifications | |
|---|---|
| Ventilation Capacity | Up to 6,000 square feet |
| Energy Recovery | Up to 82% |
| Ozone | No ozone emissions |
| HVAC System Compatibility | All HVAC system types |
| Electrical Rating | Washable MERV-4 |
| Defrost | Electronically controlled damper |
| Optional accessories | Yes (Timers, Digital Wall Controls, Programmable Wall Controls) |
| Warranty | 5-Year Limited Warranty on covered components |
| Product Specifications | |
|---|---|
| Humidity Levels | Provides up to 17 gallons or moisture per day |
| Whole-Home Application | ✓ |
| Ozone | No ozone emissions |
| HVAC System Compatibility | Annual water panel replacement |
| Component Life | Annual water panel replacement |
| Electrical Rating | 24V-60hz-0.5amps |
| Warranty | 5-Year Limited Warranty on covered components |
| Product Specifications | |
|---|---|
| Humidity Levels | Provides up to 18 gallons of moisture per day |
| Whole-Home Application | ✓ |
| HVAC System Compatibility | Annual water panel replacement |
| Component Life | Annual water panel replacement |
| Electrical Rating | 120V-60hz-1ph-0.8 amps |
| Warranty | 5-Year Limited Warranty on covered components |
| Product Specifications | |
|---|---|
| Humidity Levels | Removes 70, 95 or 130 Pints per day |
| Whole-Home Application | ✓ |
| Ozone | No ozone emissions |
| HVAC System Compatibility | Requires variable-speed indoor unit |
| Component Life | Not Applicable |
| Electrical Rating | 070: 120V-60hz-1ph-6.3 amps; 095: 120V-60hz-1ph-8 amps; 135: 120V-60hz-1ph-20amps |
| Warranty | 5-Year Limited Warranty on covered components |
| Product Specifications | |
|---|---|
| Humidity Levels | Removes more than 150 Liters per day |
| Whole-Home Application | ✓ |
| Ozone | No ozone emissions |
| HVAC System Compatibility | Requires variable-speed indoor unit |
| Component Life | Not Applicable |
| Electrical Rating | Not Applicable |
| Wattage | UV1000: 1496 microwatts/cm2 output; UV2000: 2138 microwatts/cm2 output |
| Warranty | 5-Year Limited Warranty on covered components |
| Product Specifications | |
|---|---|
| Filtration Levels: Bioaerosols | Reduces by 50% within 45 minutes |
| Whole-Home Application | ✓ |
| Ozone | No ozone emissions |
| HVAC System Compatibility | All HVAC system types |
| Lamp Life | 1 Year |
| Electrical Rating | 41W: 41 watts 110/230V-1ph-50/60hz; UV1000: 120V.46 amps – 56 watts; UV2000: 120V .9 amps – 108 watts; |
| Wattage | UV1000: 1496 microwatts/cm2 output; UV2000: 2138 microwatts/cm2 output |
| Warranty | 5-Year Limited Warranty on covered components |
| Product Specifications | |
|---|---|
| Minimum Efficiency Reporting Value (MERV) | Equivalent to MERV-17 (not MERV rated) |
| Filtration Levels: Hospital Grade | ✓ |
| Filtration Levels: Particles | 99.97% efficient in removing down to .3 micron |
| Filtration Levels: Bioaerosols | 99.97% efficient in removing down to .3 micron |
| Whole-Home Application | ✓ |
| Ozone | No ozone emissions; Ozone destruction with optional carbon canister |
| HVAC System Compatibility | All HVAC system types |
| Filter Life | Carbon pre-filter: 12 months; HEPA filter: 2 to 5 Years; Inner carbon filter: 3 months; Optional coconut shell carbon canister: 1 Year |
| PCO Cartridge Life | Not Applicable |
| Lamp Life | Not Applicable |
| Electrical Rating | 120V-60hz-1ph; 125 watts |
| Replacement Filter Options | Optional carbon filtration – 3lb carbon HEPA-20; 6lb carbon HEPA-40 and HEPA-60; 30lb carbon HEPA-40 and HEPA-60 |
| Warranty | 5-Year Limited Warranty on covered components |
| Product Specifications | |
|---|---|
| Minimum Efficiency Reporting Value (MERV) | MERV-11 |
| Filtration Levels: Particles | Removes Up To 85% Down to 3 Microns |
| Filtration Levels: Bioaerosols | Removes Up To 28% Down to 3 Microns |
| Whole-Home Application | ✓ |
| Ozone | Reduces and destroys ozone |
| HVAC System Compatibility | All HVAC system types |
| Filter Life | Up to 12 months |
| PCO Cartridge Life | Not Applicable |
| Lamp Life | Not Applicable |
| Electrical Rating | Not Applicable |
| Replacement Filter Options | MERV-11 3″ Box; MERV-11 5″ Box |
| Warranty | Cabinets receive a 5-Year Limited Warranty on covered components |
| Product Specifications | |
|---|---|
| Minimum Efficiency Reporting Value (MERV) | MERV-13 |
| Filtration Levels: Particles | Removes Up To 99% Down to 3 Microns |
| Filtration Levels: Bioaerosols | Removes Up To 54% Down to 3 Microns |
| Whole-Home Application | ✓ |
| Ozone | Reduces and destroys ozone |
| HVAC System Compatibility | All HVAC system types |
| Filter Life | Up to 12 months |
| PCO Cartridge Life | Not Applicable |
| Lamp Life | Not Applicable |
| Electrical Rating | Not Applicable |
| Replacement Filter Options | MERV 13 5″ Box |
| Warranty | Cabinets receive a 5-Year Limited Warranty on covered components |
| Product Specifications | |
|---|---|
| Minimum Efficiency Reporting Value (MERV) | MERV-16 |
| Filtration Levels: Hospital Grade | ✓ |
| Filtration Levels: Particles | Removes over 95% down to .3 micron |
| Filtration Levels: Bioaerosols | Removes over 90% down to .01 micron |
| Whole-Home Application | ✓ |
| Ozone | Reduces and destroys ozone |
| HVAC System Compatibility | All HVAC system types |
| Filter Life | Up to 12 months |
| PCO Cartridge Life | Not Applicable |
| Lamp Life | Not Applicable |
| Electrical Rating | Not Applicable |
| Replacement Filter Options | MERV-16 5″ Box |
| Warranty | 5-Year Limited Warranty on covered components |
| Product Specifications | |
|---|---|
| Filtration Levels: Hospital Grade | MERV 16 hospital grade |
| Filtration Levels: Particles | Y |
| Filtration Levels: Bioaerosols | Y |
| Whole-Home Application | ✓ |
| Ozone | Reduces and destroys ozone |
| HVAC System Compatibility | Works with communicating Lennox systems and the iComfort® S30 |
| Filter Life | 1 year rated |
| PCO Cartridge Life | 1 year rated |
| Lamp Life | 1 year rated |
| Replacement Filter Options | PCO replacement kits (same as existing PureAir) |
| Warranty | 10-year limited warranty on covered components |
| Product Specifications | |
|---|---|
| Filtration Levels: Hospital Grade | MERV 16 hospital grade |
| Filtration Levels: Particles | Y |
| Filtration Levels: Bioaerosols | Y |
| Whole-Home Application | ✓ |
| Ozone | Reduces and destroys ozone |
| HVAC System Compatibility | Works with communicating Lennox systems and the iComfort® S30 |
| Filter Life | 1 year rated |
| PCO Cartridge Life | 1 year rated |
| Lamp Life | 1 year rated |
| Replacement Filter Options | PCO replacement kits (same as existing PureAir) |
| Warranty | 10-year limited warranty on covered components |
| Product Specifications | |
|---|---|
| High-Efficiency Evaporator Coil | ✓ |
| Motor | Direct drive |
| Insulated Blower Compartment | ✓ |
| Environmentally Responsible | R-410A refrigerant |
| Orientation | Up-flow/horizontal (down-flow optional—accessory required) |
| Warranty | 5-Year Limited Warranty on covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Product Specifications | |
|---|---|
| High-Efficiency Evaporator Coil | ✓ |
| High Static Capability | ✓ |
| Motor | Variable-speed |
| Insulated Blower Compartment | ✓ |
| Environmentally Responsible | R-410A refrigerant |
| Orientation | Up-flow/horizontal |
| Warranty | 5-Year Limited Warranty on covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Product Specifications | |
|---|---|
| High-Efficiency Evaporator Coil | ✓ |
| High Static Capability | ✓ |
| Motor | Constant torque |
| Insulated Blower Compartment | ✓ |
| Environmentally Responsible | R-410A |
| Orientation | Up-flow/horizontal (down-flow, optional accessory required) |
| Warranty | 5-Year Limited Warranty on covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Product Specifications | |
|---|---|
| High-Efficiency Evaporator Coil | ✓ |
| Motor | Direct drive |
| Insulated Blower Compartment | ✓ |
| Environmentally Responsible | R-410A |
| Orientation | Up-flow/horizontal (down-flow optional accessory required) |
| Warranty | 5-Year Limited Warranty on covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Product Specifications | |
|---|---|
| High-Efficiency Evaporator Coil | ✓ |
| SilentComfort™ Technology | ✓ |
| High Static Capability | ✓ |
| Motor | Variable-speed |
| Variable-Speed Blower Motor | ✓ |
| Insulated Blower Compartment | ✓ |
| Environmentally Responsible | R-410A refrigerant |
| Orientation | 4-Way Multi-position |
| Warranty | 10-Year Limited Warranty on covered components |
| Product Specifications | |
|---|---|
| High-Efficiency Evaporator Coil | ✓ |
| SilentComfort™ Technology | ✓ |
| High Static Capability | ✓ |
| Motor | Variable-speed |
| Variable-Speed Blower Motor | ✓ |
| MERV 16 Precision Pleat Filter | ✓ |
| Insulated Blower Compartment | ✓ |
| Environmentally Responsible | R-410A refrigerant |
| Orientation | Up-flow/horizontal (down-flow optional—accessory required) |
| Warranty | 10-Year Limited Warranty on covered components |
| Product Specifications | |
|---|---|
| High-Efficiency Evaporator Coil | ✓ |
| Motor | Direct drive |
| Variable-Speed Blower Motor | ✓ |
| Insulated Blower Compartment | ✓ |
| Environmentally Responsible | R-410A refrigerant |
| Orientation | Up-flow/horizontal (downflow optional — accessory required) |
| Warranty | 5-Year Limited Warranty on covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Product Specifications | |
|---|---|
| High-Efficiency Evaporator Coil | ✓ |
| Motor | Variable-Speed |
| Variable-Speed Blower Motor | ✓ |
| Insulated Blower Compartment | ✓ |
| Environmentally Responsible | R-410A refrigerant |
| Orientation | Up-flow/horizontal (downflow optional — accessory required) |
| Warranty | 5-Year Limited Warranty on all covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Product Specifications | |
|---|---|
| High-Efficiency Evaporator Coil | ✓ |
| High Static Capability | ✓ |
| Motor | Constant torque |
| Insulated Blower Compartment | ✓ |
| Environmentally Responsible | R-410A refrigerant |
| Orientation | Up-flow/horizontal (down-flow, optional accessory required) |
| Warranty | 5-Year Limited Warranty on all covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Product Specifications | |
|---|---|
| High-Efficiency Evaporator Coil | ✓ |
| SilentComfort™ Technology | ✓ |
| High Static Capability | ✓ |
| Motor | Variable-speed |
| Variable-Speed Blower Motor | ✓ |
| Insulated Blower Compartment | ✓ |
| Environmentally Responsible | R-410A refrigerant |
| Orientation | 4-Way Multi-position |
| Warranty | 10-year limited warranty on all covered components |
| Technical Specifications | |
|---|---|
| Energy Efficiency | Up to 98.7% AFUE |
| ENERGY STAR® Certified | ✓ |
| Stages of Heating | Modulating |
| Quiet Operation | SilentComfort™ Technology and Fully Insulated Cabinet |
| Motor | Variable Speed |
| Enhanced Humidity Control | ✓ |
| Blower Compartment | Insulated |
| Air Filter and Humidifier Compatible | < span style=”color: red;”>✓ |
| Ultra-Low Continuous Fan | ✓ |
| Ignition | SureLight® Silicon Nitride Ignitor |
| Parts Warranty | 10-Year Limited Warranty on covered components |
| Heat Exchanger Warranty | Limited Lifetime Warranty |
Ultra Condensing Efficiency
Navien’s Condensing Technology offers the high efficiency. Money and energy savings over tank type water heaters and traditional water heaters.
Two Stainless Steel Heat Exchangers
Provides longer life expectancy as they are highly resistant to corrosion and erosion compared to copper heat exchangers. Reduces minerals deposits
Low NOx Emissions (= 20ppm)
New metal fiber burner is designed to deliver a consistent air/gas mixture improving combustion efficiency. Result in less acid rain and less green house effect. Comply with SCAQMD 1146.2 strict NOx emissions standard.
2″ PVC, CPVC, Polyprophylene Venting Up To 60′
2″ venting option allows for a flue to be pulled through the existing vent. 3″ vents can be used up to 150′ with standard 2″ x 3″ adapters.
Utilizes Existing 1/2″ Gas Line
The negative pressure gas valve and fan with dual venturi operation allows for better adaptability to low gas pressure applications. Makes it possible for the NPE to be installed 1/2″ gas lines up to 24′.
Field Convertible
NCB models allow for easy convertibility from NG to LP.
Where Technology Meets Ecology, Combination Boiler
The ideal solution for customers who need both domestic hot water and a space heating application. Heats water when needed, making it environmentally sound as well as cost efficient.
Hydronic Heating Benefits
Clean: little chance to cause dust or lower humidity because there is no air movement. Silent: offers silent heating because no blowers are needed for forced circulation. Comfort: keeps floors warm but indoor air fresh, making people feel warm and comfortable. Coverage: radiant heat makes heating from floor to ceiling possible. Economical: radiant heat in the floors can transmit warmth throughout the house hours after turning off the heater.
Automatic Water Filling System
Automatically fills water into space heating pipes when the unit senses a water shortage.
Powerful Anti-Freeze Feature
The Combi’s built-in Control System is designed to keep the unit’s plumbing frost free in winter conditions.
| Data Field | NCB-210 | |
| Gas Input | Space Heating | 18,000-100,000 BTU/H |
| Gas Input | Domestic Hot Water | 18,000-180,000 BTU/H |
| AFUE | 95.0% | |
| Flow Rate (DHW) | 77°F (43°C) Temp Rise | 4.0 GPM (15.1 L/m) |
| Dimensions | 17″(W) x 28″(H) x 12″(D) | |
| Weight | 84 lbs (38kg) | |
| Installation Type | Indoor Wall-Hung | |
| Venting Type | Forced Draft Direct Vent | |
| Ignition | Electronic Ignition | |
| Water Pressure (Hydronic/DHW) | 12-30 PSI / 15-150 PSI | |
| Natural Gas Supply Pressure (from source) | 3.5″-10.5″ WC | |
| Propane Gas Supply Pressure (from source) | 8.0″-13.5″ WC | |
| Natural Gas Manifold Pressure (min to max) | -0.05″ WC to -0.36″ WC | |
| Propane Gas Manifold Pressure (min to max) | -0.1″ WC to -0.66″ WC | |
| Minimum Flow Rate (DHW) | 0.5 GPM (1.9 L/m) | |
| Connection Sizes | Heating Supply/Return | 1″ NPT |
| Connection Sizes | DHW Inlet/Outlet | 3/4″ NPT |
| Connection Sizes | Gas Inlet | 3/4″ NPT |
| Connection Sizes | Auto Feeder | 1/2″ NPT |
| Connection Sizes | Condensate Outlet | 1/2″ NPT |
| Power Supply | Main Supply | 120V AC, 60Hz |
| Power Supply | Maximum Power Consumption | 200W (up to 2 amperes) |
| Materials | Casing | Cold Rolled Carbon Steel |
| Materials | Heat Exchangers | Primary/Secondary Heat Exchanger: Stainless Steel DHW Heat Exchanger: Stainless Steel |
| Venting | Exhaust | 2” or 3″ PVC, CPVC, Polypropylene 2” or 3″ Special Gas Vent Type BH (Class II, A/B/C) |
| Venting | Intake | 2” or 3″ PVC, CPVC, Polypropylene 2” or 3″ Special Gas Vent Type BH (Class II, A/B/C) |
| Venting | Vent Clearances | 0″ to Combustibles |
| Safety Devices | Flame Rod, APS, Gas Valve Operation Detector, Ignition Operation Detector, Water Temperature High Limit Switch, Exhaust Temperature High Limit Sensor |
|
| Technical Specifications | |
|---|---|
| Energy Efficiency | 93% AFUE |
| Stages of Heating | Single-Stage |
| Quiet Operation | Steel Cabinet |
| Motor | PSC |
| Blower Compartment | Sealed |
| Air Filter and Humidifier Compatible | ✓ |
| Ignition | SureLight®Silicon Nitride Ignitor |
| Parts Warranty | 5-Year Limited Warranty on covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Heat Exchanger Warranty | 20-Year Limited Warranty |
| Technical Specifications | |
|---|---|
| Energy Efficiency | 95% AFUE |
| Stages of Heating | Single-Stage |
| Quiet Operation | Steel Cabinet |
| Motor | PSC |
| Blower Compartment | Sealed |
| Air Filter and Humidifier Compatible | ✓ |
| Ignition | SureLight®Silicon Nitride Ignitor |
| Parts Warranty | 5-Year Limited Warranty on covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Heat Exchanger Warranty | 20-Year Limited Warranty |
| Technical Specifications | |
|---|---|
| Energy Efficiency | 96% AFUE |
| ENERGY STAR® Certified | ✓ |
| Stages of Heating | Single-Stage |
| Quiet Operation | Fully Insulated Cabinet |
| Motor | Power Saver™ Constant Torque |
| Air Filter and Humidifier Compatible | ✓ |
| Ultra-Low Continuous Fan | ✓ |
| Ignition | SureLight® Silicon Nitride Ignitor |
| Parts Warranty | 5-Year Limited Warranty on covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Heat Exchanger Warranty | Limited Lifetime Warranty |
| Technical Specifications | |
|---|---|
| Energy Efficiency |
96% AFUE |
| ENERGY STAR® Certified | ✓ |
| Stages of Heating | Single-Stage |
| Quiet Operation | Fully Insulated Cabinet |
| Motor | Power Saver™ Constant Torque |
| Air Filter and Humidifier Compatible | ✓ |
| Ultra-Low Continuous Fan | ✓ |
| Ignition | SureLight® Silicon Nitride Ignitor |
| Parts Warranty | 5-Year Limited Warranty on covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Heat Exchanger Warranty | Limited Lifetime Warranty |
| Technical Specifications | |
|---|---|
| Energy Efficiency | 96% |
| ENERGY STAR® Certified | ✓ |
| Stages of Heating | Two-Stage |
| Quiet Operation | SilentComfort™ Technology and Sound Absorbing Insulation |
| Motor | Variable Speed |
| Enhanced Humidity Control | ✓ |
| Blower Compartment | Insulated |
| Air Filter and Humidifier Compatible | ✓ |
| Ultra-Low Continuous Fan | ✓ |
| Ignition | 5-Year Limited Warranty on covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Heat Exchanger Warranty | Limited Lifetime Warranty |
| Product Specifications | |
|---|---|
| Series |
LX Series |
| Configuration | Single-Stage Compressor |
| Coil | MicroChannel Coil Technology |
| Parts Warranty | 10-Year Parts Limited Warranty * |
| Other Warranty | 10-Year Compressor Limited Warranty |
| Capacity | 1.5 – 5 Tons |
| Efficiency Rating | 13 SEER |
*Must be registered online within 90 days of installation. Otherwise the parts warranty reverts to a 5-year parts limited warranty.
**Three-phase models have a 5-year compressor and a 1-year parts limited warranties.
| Product Specifications | |
|---|---|
| Series |
LX Series |
| Configuration | Single-Stage Compressor |
| Coil | MicroChannel Coil Technology |
| Parts Warranty | 10-Year Parts Limited Warranty * |
| Other Warranty | 10-Year Compressor Limited Warranty |
| Capacity | 2 – 4 Tons |
| Efficiency Rating | 14 SEER |
*Must be registered online within 90 days of installation. Otherwise the parts warranty reverts to a 5-year parts limited warranty.
**Three-phase models have a 5-year compressor and a 1-year parts limited warranties.
| Product Specifications | |
|---|---|
| Series |
LX Series |
| Configuration | Single-Stage Compressor |
| Coil | MicroChannel Coil Technology |
| Parts Warranty | 10-Year Parts Limited Warranty * |
| Other Warranty | 10-Year Compressor Limited Warranty |
| Capacity | 1.5 – 5 Tons |
| Efficiency Rating | Up to 16.5 SEER |
*Must be registered online within 90 days of installation. Otherwise the parts warranty reverts to a 5-year parts limited warranty.
| Product Specifications | |
|---|---|
| Series |
LX Series |
| Configuration | Single-Stage Compressor |
| Parts Warranty | 10-Year Parts Limited Warranty * |
| Other Warranty | 10-Year Compressor Limited Warranty |
| Capacity | 1.5 – 5 Tons |
| Efficiency Rating | 13 SEER |
*Must be registered online within 90 days of installation. Otherwise the parts warranty reverts to a 5-year parts limited warranty.
<
| Product Specifications | |
|---|---|
| Series |
LX Series |
| Configuration | Single-Stage Compressor |
| Parts Warranty | 10-Year Parts Limited Warranty * |
| Other Warranty | 10-Year Compressor Limited Warranty |
| Capacity | 1.5 – 5 Tons |
| Efficiency Rating | 13 SEER |
*Must be registered online within 90 days of installation. Otherwise the parts warranty reverts to a 5-year parts limited warranty.
| Product Specifications | |
|---|---|
| Series |
LX Series |
| Configuration | Single-Stage Compressor |
| Parts Warranty | 10-Year Parts Limited Warranty * |
| Other Warranty | 10-Year Compressor Limited Warranty |
| Capacity | 1.5 – 5 Tons |
| Efficiency Rating | 14 SEER |
*Must be registered online within 90 days of installation. Otherwise the parts warranty reverts to a 5-year parts limited warranty.
| Product Specifications | |
|---|---|
| Series |
LX Series |
| Configuration | Single-Stage Compressor |
| Coil | MicroChannel Coil Technology |
| Parts Warranty | 10-Year Parts Limited Warranty * |
| Other Warranty | 10-Year Compressor Limited Warranty |
| Capacity | 1.5 – 5 Tons |
| Efficiency Rating | 14 SEER |
*Must be registered online within 90 days of installation. Otherwise the parts warranty reverts to a 5-year parts limited warranty.
| Product Specifications | |
|---|---|
| Series |
LX Series |
| Configuration | Single-Stage Compressor |
| Coil | MicroChannel Coil Technology |
| Parts Warranty | 10-Year Parts Limited Warranty * |
| Other Warranty | 10-Year Compressor Limited Warranty |
| Capacity | 1.5 – 5 Tons |
| Efficiency Rating | 14 SEER/12.2 EER |
*10-year parts limited warranty requires online registration within 90 days of installation. Otherwise, the warranty reverts to the standard 5-year parts limited warranty. (YCS models meet Southwest Region requirements for central split system air conditioners of 12.2 EER for capacities smaller than 45,000 BTU/Hr and 11.7 EER for larger capacities.)
| Product Specifications | |
|---|---|
| Series |
LX Series |
| Phase |
Single Phase and Three Phase (TCG) |
| Configuration | Single-Stage Compressor |
| Coil | MicroChannel Coil Technology |
| Parts Warranty | 10-Year Parts Limited Warranty * |
| Other Warranty | 10-Year Compressor Limited Warranty |
| Capacity | 1.5 – 5 Tons |
| Efficiency Rating | Up to 17 SEER |
*Must be registered online within 90 days of installation. Otherwise the parts warranty reverts to a 5-year parts limited warranty.
| Product Specifications | |
|---|---|
| Series |
LX Series |
| Phase |
Single-phase |
| Configuration | Two-Stage Compressor |
| Coil | MicroChannel Coil Technology |
| Parts Warranty | 10-Year Parts Limited Warranty * |
| Other Warranty | 10-Year Compressor Limited Warranty |
| Capacity | 2 – 5 Tons |
| Efficiency Rating | Up to 17 SEER |
*Must be registered online within 90 days of installation. Otherwise 10-year parts and 10-year compressor limited warranties revert to standard 5-year parts and 5-year compressor limited warranties.
| Product Specifications | |
|---|---|
| Series |
Affinity™ Series |
| Configuration | Two-Stage Compressor |
| Fan Motor | QuietDrive™ Comfort System |
| Parts Warranty | 10-Year Parts Limited Warranty * |
| Other Warranty | Lifetime Compressor Limited Warranty ** |
| Capacity | 2 – 5 Tons |
| Efficiency Rating | Up to 19 SEER |
*10-year parts limited warranty requires online registration within 90 days of installation. Otherwise, warranty reverts to the 5-year parts limited warranty.
**Lifetime Compressor Limited Warranty must be registered within 90 days of installation. Otherwise, warranty reverts to a 10-year Compressor Limited Warranty.
| Product Specifications | |
|---|---|
| Series |
Affinity™ Series |
| Configuration | Variable-capacity Compressor |
| Fan Motor | QuietDrive™ Comfort System |
| Parts Warranty | 10-Year Parts Limited Warranty * |
| Other Warranty | Premium System Limited Warranty Or 10-Year Limited Compressor Limited Warranty ** |
| Capacity | 2 – 5 Tons |
| Efficiency Rating | Up to 20 SEER |
*Limited compressor limited warranty with factory-matched York® system.
**Must be registered online within 90 days of installation. Otherwise the parts warranty reverts to a 5-year parts limited warranty.
| Product Specifications | |
|---|---|
| Energy Efficiency | Up to 13.00 SEER |
| Stages of Cooling | Single-Stage |
| Sound Rating | As low as 76 dB |
| Environmentally Responsible | R-410A refrigerant |
| Cabinet | PermaGuard™ Cabinet and SmartHinge™ Louver Design |
| Full Line of Scroll Compressors | ✓ |
| Compressor/Parts Warranty | 5-Year Limited Warranty on covered components including compressor. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Product Specifications | |
|---|---|
| Energy Efficiency |
Up to 16.00 SEER |
| Stages of Cooling | Single-Stage |
| Sound Rating | As low as 76 dB |
| SilentComfort™ Technology | ✓ |
| Environmentally Responsible | R-410A refrigerant |
| Cabinet | PermaGuard™ Cabinet and SmartHinge™ Louver Design |
| Full Line of Scroll Compressors | ✓ |
| Compressor/Parts Warranty |
5-Year Limited Warranty on covered components including compressor. |
Energy Efficiency Up to 16.00 SEER
Stages of Cooling Single-Stage
| Product Specifications | |
|---|---|
| Energy Efficiency |
Up to 16.00 SEER |
| Stages of Cooling | Single-Stage |
| Sound Rating | As low as 76 dB |
| SilentComfort™ Technology | ✓ |
| Environmentally Responsible | R-410A refrigerant |
| Cabinet | PermaGuard™ Cabinet and SmartHinge™ Louver Design |
| Full Line of Scroll Compressors | ✓ |
| Compressor/Parts Warranty |
5-Year Limited Warranty on covered components including compressor. |
| Product Specifications | |
|---|---|
| Energy Efficiency |
Up to 15.50 SEER |
| Stages of Cooling | Single-Stage |
| Sound Rating | As low as 74 dB |
| SilentComfort™ Technology | ✓ |
| Environmentally Responsible | R-410A refrigerant |
| Cabinet | PermaGuard™ Cabinet and SmartHinge™ Louver Design |
| Full Line of Scroll Compressors | ✓ |
| Compressor/Parts Warranty |
10-Year Limited Warranty on compressor, 5-Year Limited Warranty on covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Product Specifications | |
|---|---|
| Energy Efficiency |
Up to 17.00 SEER |
| Stages of Cooling | Single-Stage |
| Sound Rating | As low as 71 dB |
| SilentComfort™ Technology | ✓ |
| ENERGY STAR® Certified | ✓ |
| Environmentally Responsible | R-410A refrigerant |
| Cabinet | PermaGuard™ Cabinet and SmartHinge™ Louver Design |
| Full Line of Scroll Compressors | ✓ |
| Compressor/Parts Warranty | 10-Year Limited Warranty on compressor, 5-Year Limited Warranty on covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Product Specifications | |
|---|---|
| Energy Efficiency |
Up to 17.20 SEER |
| Stages of Cooling | Multi-Stage |
| Sound Rating | As low as 74 dB |
| SilentComfort™ Technology | ✓ |
| ENERGY STAR® Certified | ✓ |
| Environmentally Responsible | R-410A refrigerant |
| Cabinet | PermaGuard™ Cabinet and SmartHinge™ Louver Design |
| Full Line of Scroll Compressors | ✓ |
| Compressor/Parts Warranty | 10-Year Limited Warranty on compressor, 5-Year Limited Warranty on covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Product Specifications | |
|---|---|
| Energy Efficiency | Up to 20.00 SEER |
| Stages of Cooling | Variable-capacity operation |
| Sound Rating | As low as 65 dB |
| SilentComfort™ Technology | ✓ |
| ENERGY STAR® Certified | ✓ |
| Environmentally Responsible | R-410A refrigerant and Solar Ready |
| Cabinet | PermaGuard™ Cabinet and SmartHinge™ Louver Design |
| On-board Diagnostics | iComfort®-enabled technology |
| Full Line of Scroll Compressors | ✓ |
| Compressor/Parts Warranty | 10-Year Limited Warranty on compressor, 5-Year Limited Warranty on covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration. |
| Product Specifications | |
|---|---|
| Energy Efficiency | Up to 18.50 SEER |
| Stages of Cooling | Single-Stage |
| Sound Rating | As low as 65 dB |
| SilentComfort™ Technology | ✓ |
| Solar-Ready Design | ✓ |
| Environmentally Responsible | R-410A refrigerant and Solar Ready |
| Cabinet | PermaGuard™ Cabinet and SmartHinge™ Louver Design |
| On-board Diagnostics | iComfort®-enabled technology |
| Full Line of Scroll Compressors | ✓ |
| Compressor/Parts Warranty | 10-Year Limited Warranty on covered components including compressor |
| Product Specifications | |
|---|---|
| Energy Efficiency | Up to 21.00 SEER |
| Stages of Cooling | Two-Stage |
| Sound Rating | As low as 69 dB |
| SilentComfort™ Technology | ✓ |
| Solar-Ready Design | ✓ |
| Environmentally Responsible R-410A refrigerant and Solar Ready | ✓ |
| Cabinet | PermaGuard™ Cabinet and SmartHinge™ Louver Design |
| On-board Diagnostics | iComfort®-enabled technology |
| Full Line of Scroll Compressors | ✓ |
| Compressor/Parts Warranty | 10-Year Limited Warranty on covered components including compressor |
| Product Specifications | |
|---|---|
| Energy Efficiency | Up to 26.00 SEER |
| Stages of Cooling | Variable-capacity operation |
| Sound Rating | As low as 59 dB |
| SilentComfort™ Technology | ✓ |
| Solar-Ready Design | ✓ |
| ENERGY STAR® Certified | ✓ |
| Environmentally Responsible | R-410A refrigerant and Solar Ready |
| Cabinet | PermaGuard™ Cabinet and SmartHinge™ Louver Design |
| On-board Diagnostics | iComfort®-enabled technology |
| Full Line of Scroll Compressors | ✓ |
| Compressor/Parts Warranty | 10-Year Limited Warranty on covered components including compressor |
| Tax Credit Eligible | ✓ |
Ultra Condensing Efficiency
Navien’s Condensing Technology offers the high efficiency. Money and energy savings over tank type water heaters and traditional water heaters.
Two Stainless Steel Heat Exchangers
Provides longer life expectancy as they are highly resistant to corrosion and erosion compared to copper heat exchangers. Reduces minerals deposits
Low NOx Emissions (= 20ppm)
New metal fiber burner is designed to deliver a consistent air/gas mixture improving combustion efficiency. Result in less acid rain and less green house effect. Comply with SCAQMD 1146.2 strict NOx emissions standard.
2″ PVC, CPVC, Polyprophylene Venting Up To 60′
2″ venting option allows for a flue to be pulled through the existing vent. 3″ vents can be used up to 150′ with standard 2″ x 3″ adapters.
Utilizes Existing 1/2″ Gas Line
The negative pressure gas valve and fan with dual venturi operation allows for better adaptability to low gas pressure applications. Makes it possible for the NPE to be installed 1/2″ gas lines up to 24′.
Field Convertible
NCB models allow for easy convertibility from NG to LP.
Where Technology Meets Ecology, Combination Boiler
The ideal solution for customers who need both domestic hot water and a space heating application. Heats water when needed, making it environmentally sound as well as cost efficient.
Technical Specifications
| Technical Specifications | ||
|---|---|---|
| Data Field | NCB-150E | |
| Gas Input | Space Heating | 12,000-60,000 BTU/H |
| Gas Input | Domestic Hot Water | 12,000-120,000 BTU/H |
| AFUE | 95.0% | |
| Flow Rate (DHW) | 77 °F (43 °C) Temp Rise | 2.6 GPM (9.8 L/m) |
| Dimensions | 17″(W) x 28″(H) x 12″(D) | |
| Weight | 66 lbs (30kg) | |
| Installation Type | Indoor wall-hung | |
| Venting Type | Forced draft direct vent | |
| Ignition | Electronic ignition | |
| Water Pressure (Hydronic/DHW) | 12-30 PSI /15-150 PSI | |
| Natural Gas Supply Pressure (from source) | 3.5″ -10.5″ WC | |
| Propane Gas Supply Pressure (from source) | 8.0″ -13.5″ WC | |
| Natural Gas Manifold Pressure (min to max) | -0.08″ WC / -0.34″ WC | |
| Propane Gas Manifold Pressure (min to max) | -0.08″ WC / -0.30″ WC | |
| Minimum Flow Rate (DHW) | 0.5 GPM (1.9 L/m) | |
| Connection Sizes | Heating Supply/Return | 1″ NPT |
| Connection Sizes | DHW Inlet/Outlet | 3/4″ NPT |
| Connection Sizes | Gas Inlet | 3/4″ NPT |
| Connection Sizes | Auto Feeder | 1/2″ NPT |
| Connection Sizes | Condensate Outlet | 1/2″ NPT |
| Power Supply | Main Supply | 120V AC, 60Hz |
| Power Supply | Maximum Power Consumption | 200W (up to 2 amperes) |
| Materials | Casing | Cold rolled carbon steel |
| Materials | Heat Exchangers | Primary/secondary heat exchanger: stainless steel DHW heat exchanger: stainless steel |
| Venting | Exhaust | 2″ or 3″ PVC, CPVC, approved polypropylene 2″ or 3″ special gas vent type BH (Class II, A/B/C) |
| Venting | Intake | 2″ or 3″ PVC, CPVC, polypropylene 2″ or 3″ special gas vent type BH (Class II, A/B/C) |
| Venting | Vent Clearances | 0″ to combustibles |
| Safety Devices | Flame rod, APS, gas valve operation detector, ignition operation detector, water temperature high limit switch, exhaust temperature high limit sensor |
|
| Technical Specifications | |
|---|---|
| Home Size | Southern climate: 2.5 baths Northern climate: 2 baths |
| Outdoor Unit Dimensions | 20.5″ (H) x 13.8″ (W) x 6.7″ (D) |
| Weight | 40 lbs. |
| Gas Consumption | Min. 15,000 btuh Max. 157,000 btuh |
| (NG & LP) | Natural Gas / Propane |
| Capacity Range: | 0.5 – 7.1 GPM |
| Uniform Energy Factor | 0.89 (UEF) |
| Temperature Settings | 115-140° F (in 5° F Intervals) |
Our NRC711 series is perfect for homes with 1-3 showers. When properly sized, they provide an endless supply of hot water to an entire home. With state-of-the-art gas combustion technology, Noritz burners maximize output and provide temperature stability while maintaining low emissions. Built-in features include safety lock-out, freeze protection, and high elevation adjustment.
Safety lock out – Default max. 120 degrees (refer to owner’s manual for higher temp)
Standard burner – High performance single flame burner.
Fully modulating burner – Automatically adjusts burner level accordingly.
Turbo Flow – Up to 7.1 GPM @ 35 degree temperature rise (6.3 GPM @ 45 degree rise).
Direct ignition – No standby pilot light.
Thermal fuse – Automatic overheat protection system.
Resin coated PC board – Increases durability and protection from elements.
Automatic air regulator – Monitors internal temperature/maximizes burner efficiency.
| Technical Specifications | |
|---|---|
| Home Size | Southern climate: 1 baths Northern climate: 0 bath |
| Outdoor Unit | Dimensions 20.5″ (H) x 13.8″ (W) x 6.7″ (D) |
| Weight | 33 lbs. |
| Gas Consumption | Min. 15,000 btuh Max. 120,000 btuh |
| (NG & LP) | Natural Gas / Propane |
| Capacity Range: | 0.5-5.0 GPM |
| Uniform Energy Factor | 0.81 (UEF) |
| Temperature Settings | 115-140° F (in 5° F Intervals) |
Notes: ( Freeze Protection Kit is required for Northern climate
Our NR50 outdoor model is our newest and most affordable model for apartments, condominiums and townhouses with 1-2 showers. NR50 outdoor model is the way to upgrade your lifestyle to continuous hot water when you need it. This compact model is perfect in the southeastern region of the USA.
Outdoor model – NO VENTING REQUIRED – No expensive venting required
12 year warranty – Longer coverage than competition, 12 years on heat exchanger, 5 years on parts, 1 year labor
Optional Freezing protection kit – Freezing protection kit is sold separately
0.5 GPM min. flow activation – Capable to handle higher incoming water temperature than current residential series
1/2″ Gas fitting – NO NEED TO UPSIZE – No need to upgrade gas line if pipe length is less than 20′ (Natural Gas) from meter or 40′ (Propane) from gas tank
Safety lock out – Default max. 120° (refer to owner’s manual for higher temp)
Standard burner – High performance single flame burner
Fully modulating burner – Automatically adjusts burner level accordingly
Turbo Flow – Up to 5.0 GPM @ 30° temperature rise (4.2 GPM @ 45° rise)
Direct ignition – No standby pilot light
Thermal fuse – Automatic overheat protection system
Resin coated PC board – Increases durability and protection from elements
Automatic air regulator – Monitors internal temperature/maximizes burner efficiency
Resin coated PC board – Increases durability and protection from elements
| Technical Specifications | |
|---|---|
| Home Size | Southern climate: 4-4.5 baths Northern climate: 3 baths |
| Indoor Unit | Dimensions 27.6″ (H) x 17.3″ (W) x 14.8 (D) |
| Weight | 85 lbs |
| Gas Consumption | Min 18,000 btuh Max 199,900 btuh |
| (NG & LP) | Natural Gas / Propane |
| Capacity Range: | 0.5 to 11.1 GPM |
| Uniform Energy Factor | 0.94 (UEF) |
| Temperature Settings | 100-140 F ( IN 5° F Intervals) |
Noritz NRCP series heaters offer the latest cutting edge technology in tankless water heaters. The NRCP1112 is an indoor condensing tankless water heater that can produce up to 11 gallons of hot water per minute. The NRCP features an internal pump that can be used in two different modes. External mode, combined with a return line, can keep the water in the pipes warm resulting in lower wait times for hot water. Internal mode, which does not require a return line, will keep the water within the unit warm to reduce the traditional delay between water demand and the startup sequence. This unit is equipped with heavy duty 304 stainless steel heat exchanger for superior thermal transfer as well as excellent resistance to scale formation. Noritz NRCP series heaters can be vented using 2? schedule 40 PVC pipe and operate with as little as 3.5? water column on the incoming gas line. These features contribute to a relatively low installation cost. All brought to you by Noritz America, the World’s largest producer of tankless water heaters.
| Technical Specifications | |
|---|---|
| Home Size | Southern climate: 2 baths Northern climate: 1.5 baths |
| Indoor Unit | Dimensions 27.2″ x 18.3″ x 9.4″ |
| Weight | 50 lbs |
| Gas Consumption | Min 15,000 btuh Max 120,000 btuh |
| (NG & LP) | Natural Gas / Propane |
| Capacity Range: | 0.5 – 6.6 GPM |
| Uniform Energy Factor | 0.89 (NG) | 0.89 (LP) |
| Temperature Settings | 115-140 °F( IN 5 ° F Intervals) |
Noritz has changed the game with the new EZTR40. Finally a direct tankless replacement for a 40 and sometimes 50 gallon tank that can be installed in the same time as a tank type water heater is now available. The timing could not be better with the upcoming NAECA regulations changing the dimensions of traditional tanks. Retro fit of those tanks has been made EZ by our new top mount water connections, 1/2″ gas line, and most of all the ability to vent directly through the existing 3″ or 4″ round B-Vent.
| Technical Specifications | |
|---|---|
| Weight | 95 lbs |
| Gas Consumption | Min 18,000 btuh Max 199,900 btuh |
| (NG & LP) | Natural Gas/Propane |
| Capacity Range | 0.4 GPM up to 11.1GPM |
| Temperature Settings | Domestic Mode: 90°F to 140°F – Heating Mode: 100°F to 180°F |
| AFUE | 95% |
The NRCB is the first and only combination boiler on the market that can simultaneously provide domestic and space heating for residential applications. These simultaneous capabilities are easy to control and especially beneficial for applications that do not store or deliver heat energy efficiently. A user can, for example, take a shower without worrying about experiencing a corresponding drop in room temperature.
Another industry first is the NRCB’s use of 316L stainless steel primary and secondary heat exchangers, which have higher corrosion resistance than traditional heat exchangers for increased durability and lifespan. A third flat plate heat exchanger for domestic water heating is also made of stainless steel.
It also far exceeds the toughest emissions standards. The unit’s fully modulating burner has a nitrogen-oxide emissions level of only 14 parts per million (ppm), far below the South Coast Air Quality Management District requirement of 20 ppm.
| Product overview and features | |
|---|---|
| Heat Capacity(Input) | Min: 17,000 Btu/hr
Max: 199,000 Btu/hr |
| Energy Factor (DOE) | Natural Gas 0.95 Propane Gas 0.97 |
| Dimensions | (W x H x D ) 17″x 28″x 15″ |
| Weight | 77 lbs |
| Installation Type | Indoor /Outdoor Wall-Hung |
| Venting Type | Direct Vent |
| Ignition | Electronic Ignition |
| Water Pressure ( min-max) | 15 – 150 PSI |
| Gas Supply Pressure (from source:min-max) |
Natural Gas 5.0″W.C. ~ 10.5″W.C.
Propane Gas .0″W.C. ~ 13.5″W.C. |
| Minimum Flow Rate to activate Water Heater |
0.5 GPM |
| Connection Sizes | Cold Water Inlet 3/4″ NPT Hot Water Outlet 3/4″ NPT Gas Inlet 3/4″ NPT |
Ultra Condensing Efficiency
Navien’s Condensing Technology offers the high efficiency. Money and energy savings over tank type water heaters and traditional water heaters.
Two Stainless Steel Heat Exchangers
Provides longer life expectancy as they are highly resistant to corrosion and erosion compared to copper heat exchangers. Reduces minerals deposits
Low NOx Emissions (= 20ppm)
New metal fiber burner is designed to deliver a consistent air/gas mixture improving combustion efficiency. Result in less acid rain and less green house effect. Comply with SCAQMD 1146.2 strict NOx emissions standard.
2″ PVC, CPVC, Polyprophylene Venting Up To 60′
2″ venting option allows for a flue to be pulled through the existing vent. 3″ vents can be used up to 150′ with standard 2″ x 3″ adapters.
Utilizes Existing 1/2″ Gas Line
The negative pressure gas valve and fan with dual venturi operation allows for better adaptability to low gas pressure applications. Makes it possible for the NPE to be installed 1/2″ gas lines up to 24′.
Field Convertible
NCB models allow for easy convertibility from NG to LP.
Where Technology Meets Ecology, Combination Boiler
The ideal solution for customers who need both domestic hot water and a space heating application. Heats water when needed, making it environmentally sound as well as cost efficient.
Hydronic Heating Benefits
Clean: little chance to cause dust or lower humidity because there is no air movement. Silent: offers silent heating because no blowers are needed for forced circulation. Comfort: keeps floors warm but indoor air fresh, making people feel warm and comfortable. Coverage: radiant heat makes heating from floor to ceiling possible. Economical: radiant heat in the floors can transmit warmth throughout the house hours after turning off the heater.
Automatic Water Filling System
Automatically fills water into space heating pipes when the unit senses a water shortage.
Powerful Anti-Freeze Feature
The Combi’s built-in Control System is designed to keep the unit’s plumbing frost free in winter conditions.
| Technical Specifications | ||
|---|---|---|
| Data Field | NCB-180E | |
| Gas Input | Space Heating | 14,000–80,000 BTU/H |
| Gas Input | Domestic Hot Water | 14,000–150,000 BTU/H |
| AFUE | 95.0% | |
| Flow Rate (DHW) | 77°F (43°C) Temp Rise | 3.4 GPM (12.9 L/m) |
| Dimensions | 17″(W) x 28″(H) x 12″(D) | |
| Weight | 74 lbs (34kg) | |
| Installation Type | Indoor wall-hung | |
| Venting Type | Forced draft direct vent | |
| Ignition | Electronic ignition | |
| Water Pressure (Hydronic/DHW) | 12–30 PSI /15–150 PSI | |
| Natural Gas Supply Pressure (from source) | 3.5″ –10.5″ WC | |
| Propane Gas Supply Pressure (from source) | 8.0″ –13.5″ WC | |
| Natural Gas Manifold Pressure (min to max) | -0.07″ WC / -0.66″ WC | |
| Propane Gas Manifold Pressure (min to max) | -0.07″ WC / -0.62″ WC | |
| Minimum Flow Rate (DHW) | 0.5 GPM (1.9 L/m) | |
| Connection Sizes | Heating Supply/Return | 1″ NPT |
| Connection Sizes | DHW Inlet/Outlet | 3/4″ NPT |
| Connection Sizes | Gas Inlet | 3/4″ NPT |
| Connection Sizes | Auto Feeder | 1/2″ NPT |
| Connection Sizes | Condensate Outlet | 1/2″ NPT |
| Power Supply | Main Supply | 120V AC, 60Hz |
| Power Supply | Maximum Power Consumption | 200W (up to 2 amperes) |
| Materials | Casing | Cold rolled carbon steel |
| Materials | Heat Exchangers | Primary/secondary heat exchanger: stainless steel DHW heat exchanger: stainless steel |
| Venting | Exhaust | 2″ or 3″ PVC, CPVC, approved polypropylene 2″ or 3″ special gas vent type BH (Class II, A/B/C) |
| Venting | Intake | 2″ or 3″ PVC, CPVC, polypropylene 2″ or 3″ special gas vent type BH (Class II, A/B/C) |
| Venting | Vent Clearances | 0″ to combustibles |
| Safety Devices | Flame rod, APS, gas valve operation detector, ignition operation detector, water temperature high limit switch, exhaust temperature high limit sensor | |
Saves Time
Delivers an endless supply of hot water whenever and wherever it’s needed – simultaneously to multiple fixtures.
The ONLY manufacturer to offer both Concentric and PVC, providing more venting options right out of the box saving you time, money and the best flexibility to get the job done fast.
Saves Money
Up to .96 Energy Factor (ENERGY STAR® qualified)
Saves Space
Similar in size to a carry-on suitcase, our space-saving design allows installation almost anywhere.
Green
Earth-friendly technology produces lower CO2 emissions which contribute to cleaner air and a healthier environment.
| Technical Specifications | |
|---|---|
| Dimensions |
Width: 18.5 inches (469.9 mm) Height: 26 inches (660.4 mm) Depth: 10 inches (254 mm) |
| Weight | 61.7 lbs (28.0 kg) |
| Installation Type | Indoor |
| Minimum/Maximum BTU | 15,200 / 199,000 Natural Gas and Propane |
| Energy Factor | 0.95 for Natural Gas and Propane |
| Temperature Range | Residential: 98°F – 140°F (37°C – 60°C) Commercial: 98°F – 185°F (37°C – 85°C) |
| Minimum Activation Rate | 0.4 gpm (1.5 lpm) |
| Flow Rate (70° / 50° Temperature Rise) | 5.5 / 7.7 gpm (20.8 / 29.2 lpm) |
| Hot Water Flow Rate Range | 0.26 – 9.8 gpm (0.98 – 37.1 lpm) |
| Controllers |
Standard: Integrated Optional: MC-195T-US, MC-100V-1US, BC100V-1US, MCC-91-2US |
| Ultra Lox NOx | Yes |
| Warranty (Residential)* | Limited 12-year on heat exchanger, 5-year on parts, 1-year on labor (5-year optional on labor) |
| Warranty (Commercial)* | Limited 5-year on heat exchanger, 5-year on parts, 1-year on labor (2-year optional on labor) |
| Mobile Home Certified | Yes |
| Valves Shipped in Box | Yes |
| High Altitude Approved | Up to 10,200 ft. (3,109 m) |
| Certifications | AHRI, CSA, Energy Star® |
| Venting Options | Concentric or PVC / CPVC |
| Tankless Rack System (TRS/TRW) Compatible | Yes |
| 1/2″ Gas Line Compatible*** | Yes |
Rinnai Ultra Series Tankless Water Heaters deliver innovation and technological leadership in condensing tankless water heating design. Providing homeowners with an endless supply of hot water, energy savings, a space saving design and environmental benefits, Rinnai offers ease of installation now with more venting options right out of the box. As the only manufacturer to offer both concentric and twin-pipe PVC venting, no adaptor is necessary to give you double the venting options on every installation. One unit. Two venting options. From one project to the next, with the RUC line of Ultra Series Tankless Water Heaters the freedom of choice is yours…right out of the box.
Saves Time
Delivers an endless supply of hot water whenever and wherever it’s needed- simultaneously to multiple fixtures.
The ONLY manufacturer to offer both Concentric and PVC, providing more venting options right out of the box saving you time, money and the best flexibility to get the job done fast.
Saves Money
Up to .96 Energy Factor (ENERGY STAR® qualified)
Saves Space
Similar in size to a carry-on suitcase, our space-saving design allows installation almost anywhere.
Green
Earth-friendly technology produces lower CO2 emissions which contribute to cleaner air and a healthier environment.
| Technical Specifications | |
|---|---|
| Dimensions |
Width: 18.5 inches (469.9mm) Height: 26 inches (660.4mm) Depth: 10 inches (254mm) |
| Weight | 61.7 lbs (28.0 kg) |
| Installation Type | Indoor |
| Minimum/Maximum BTU | 15,200 / 152,000 Natural Gas and Propan |
| Energy Factor | 0.96 for Natural Gas and Propane |
| Temperature Range | Residential: 98°F – 140°F (37°C – 60°C) Commercial: 98° F – 185° F (37°C – 85°C)** |
| Minimum Activation Rate | 0.4 gpm (1.5 lpm) |
| Flow Rate (70° / 50° Temperature Rise) | 4.2 / 5.9 gpm (15.9 / 22.3 lpm) |
| Hot Water Flow Rate Range | 0.26 – 8.0 gpm (0.98 – 30.3 lpm) |
| Controllers |
Standard: Integrated Optional: MC-195T-US, MC-100V-1US, BC-100V-1US, MCC-91-2US |
| Ultra Lox NOx | Yes |
| Warranty (Residential)* | Limited 12-year on heat exchanger, 5-year on parts, 1-year on labor (5-year optional on labor) |
| Warranty (Commercial)* | Limited 5-year on heat exchanger, 5-year on parts, 1-year on labor (2-year optional on labor) |
| Mobile Home Certified | Yes |
| Valves Shipped in Box | Yes |
| High Altitude Approved | Up to 10,200 ft. (3,109 m) |
| Certifications | AHRI, CSA, Energy Star® |
| Venting Options | Concentric or PVC / CPVC |
| Tankless Rack System (TRS/TRW) Compatible | NO |
| 1/2″ Gas Line Compatible*** | Yes |
| Technical Specifications | |
|---|---|
| Dimensions |
Width: 14 Inches (355.6 mm) Height: 23 Inches (584.2 mm) Depth: 9 Inches (228.6 mm) |
| Weight | 45.6 lbs (20.7 kg) |
| Installation Type | Indoor |
| Minimum/Maximum BTU | 10,300 / 180,000 (Natural Gas and Propane) |
| Energy Factor | 0.82 for Natural Gas and Propane |
| Temperature Range | Residential: 98°F – 140°F (37°C – 60°C) Commercial: 98°F – 160°F (37°C – 71°C)** |
| Minimum Activation Rate | 0.4 gpm (1.5 lpm) |
| Flow Rate (70° / 50° Temperature Rise) | 4.3 / 6.0 gpm (16.3 / 22.7 lpm) |
| Hot Water Flow Rate Range | 0.26 – 7.5 gpm (0.98 – 28.4 lpm) |
| Controllers |
Standard: MC-91-2US Optional: MC-100-1, BC-100V-1, MC-195T-US, MCC-91-2 |
| Ultra Lox NOx | Yes |
| Warranty (Residential)* | Limited 12-year on heat exchanger, 5-year on parts, 1-year on labor (5-year optional on labor) |
| Warranty (Commercial)* | Limited 5-year on heat exchanger, 5-year on parts, 1-year on labor (2-year optional on labor) |
| Mobile Home Certified | Yes |
| Valves Shipped in Box | Yes |
| High Altitude Approved | Up to 10,200 ft. (3,109 m) |
| Certifications | AHRI and CSA |
| Venting Options | Concentric |
| Tankless Rack System (TRS/TRW) Compatible | NO |
| 1/2″ Gas Line Compatible*** | Yes |
Ultra Condensing Efficiency
Navien’s Condensing Technology offers the high efficiency. Money and energy savings over tank type water heaters and traditional water heaters.
Two Stainless Steel Heat Exchangers
Provides longer life expectancy as they are highly resistant to corrosion and erosion compared to copper heat exchangers. Reduces minerals deposits
Low NOx Emissions (= 20ppm)
New metal fiber burner is designed to deliver a consistent air/gas mixture improving combustion efficiency. Result in less acid rain and less green house effect. Comply with SCAQMD 1146.2 strict NOx emissions standard.
2″ PVC, CPVC, Polyprophylene Venting Up To 60′
2″ venting option allows for a flue to be pulled through the existing vent. 3″ vents can be used up to 150′ with standard 2″ x 3″ adapters.
Utilizes Existing 1/2″ Gas Line
The negative pressure gas valve and fan with dual venturi operation allows for better adaptability to low gas pressure applications. Makes it possible for the NPE to be installed 1/2″ gas lines up to 24′.
Field Convertible
NCB models allow for easy convertibility from NG to LP.
Where Technology Meets Ecology, Combination Boiler
The ideal solution for customers who need both domestic hot water and a space heating application. Heats water when needed, making it environmentally sound as well as cost efficient.
Hydronic Heating Benefits
Clean: little chance to cause dust or lower humidity because there is no air movement. Silent: offers silent heating because no blowers are needed for forced circulation. Comfort: keeps floors warm but indoor air fresh, making people feel warm and comfortable. Coverage: radiant heat makes heating from floor to ceiling possible. Economical: radiant heat in the floors can transmit warmth throughout the house hours after turning off the heater.
Automatic Water Filling System
Automatically fills water into space heating pipes when the unit senses a water shortage.
Powerful Anti-Freeze Feature
The Combi’s built-in Control System is designed to keep the unit’s plumbing frost free in winter conditions.
| Technical Specifications | ||
|---|---|---|
| Data Field | NCB-180 | |
| Gas Input | Space Heating | 14,000-80,000 BTU/H |
| Gas Input | Domestic Hot Water | 14,000-150,000 BTU/H |
| AFUE | 95.0% | |
| Flow Rate (DHW) | 77°F (43°C) Temp Rise | 3.4 GPM (12.9 L/m) |
| Dimensions | 17″(W) x 28″(H) x 12″(D) | |
| Weight | 74 lbs (34kg) | |
| Installation Type | Indoor Wall-Hung | |
| Venting Type | Forced Draft Direct Vent | |
| Ignition | Electronic Ignition | |
| Water Pressure (Hydronic/DHW) | 12-30 PSI / 15-150 PSI | |
| Natural Gas Supply Pressure (from source) | 3.5″-10.5″ WC | |
| Propane Gas Supply Pressure (from source) | 8.0″-13.5″ WC | |
| Natural Gas Manifold Pressure (min to max) | -0.07″ WC to -0.66” WC | |
| Propane Gas Manifold Pressure (min to max) | -0.06″ WC to -0.62″ WC | |
| Minimum Flow Rate (DHW) | 0.5 GPM (1.9 L/m) | |
| Connection Sizes | Heating Supply/Return | 1″ NPT |
| Connection Sizes | DHW Inlet/Outlet | 3/4″ NPT |
| Connection Sizes | Gas Inlet | 3/4″ NPT |
| Connection Sizes | Auto Feeder | 1/2″ NPT |
| Connection Sizes | Condensate Outlet | 1/2″ NPT |
| Power Supply | Main Supply | |
| Power Supply | Maximum Power Consumption | 200W (up to 2 amperes) |
| Materials | Casing | Cold Rolled Carbon Steel |
| Materials | Heat Exchangers | Primary/Secondary Heat Exchanger: Stainless Steel DHW Heat Exchanger: Stainless Steel |
| Venting | Exhaust | 2” or 3″ PVC, CPVC, Polypropylene 2” or 3″ Special Gas Vent Type BH (Class II, A/B/C) |
| Venting | Intake | 2” or 3″ PVC, CPVC, Polypropylene 2” or 3″ Special Gas Vent Type BH (Class II, A/B/C) |
| Venting | Vent Clearances | 0″ to Combustibles |
| Safety Devices | Flame Rod, APS, Gas Valve Operation Detector, Ignition Operation Detector, Water Temperature High Limit Switch, Exhaust Temperature High Limit Sensor |
|
Ceiling Mounted Single Zone products offered by LG Air Conditioning Technologies for Residential and Light Commercial applications.
Wall Mounted Single Zone products offered by LG Air Conditioning Technologies for Residential and Light Commercial applications.
Ducted Single Zone products offered by LG Air Conditioning Technologies for Residential and Light Commercial applications.
Wi-Fi enabled systems such as the RLS3Y and RLS3YH series can be controlled from anywhere using the FGLair app on a mobile device.
Stylish, slim and elegant, these popular wall mounted units are designed for single rooms. Indoor units have a clean, aesthetic design and are small but mighty and shorter in length than competing units, helping them blend into any room. These 16-SEER heat pump systems now feature Inverter technology, environmentally friendly R410A refrigerant, both heating and cooling operation, quiet mode and easy maintenance.
Inverter Technology
Through advanced technology, Inverter air conditioners are more economical to operate and quieter to run than conventional units. They are smoother and more stable in operation, and reach the desired temperature more quickly than conventional air conditioners. The Inverter component allows the outdoor unit to vary its speed and output to match the required capacity of the indoor unit. Thus, the Inverter model can achieve 30% more operating efficiency than conventional models and therefore, is much less expensive to run.
Quiet Operation
Wall mounted systems include an extra quiet fan speed (“Quiet Mode”) to make sure that you are not disturbed.
Wireless Remote Controller
Comfort control is at your fingertips with the standard wireless remote controller.
Washable Panel Filter
The removable and washable panel filter is an effective air cleanser, removing mold & dust from the environment. Cleaning of the indoor unit itself is simple due to the design and shape of the casing.
As much as half of the energy used in your home goes to heating and cooling. So making smart decisions about a home’s HVAC system can have a big effect on utility bills – and comfort.
Systems 9RLS3H, 12RLS3H and 15RLS3H are among the most efficient mini-splits in North America, with Seasonal Energy Efficiency Ratings of up to 33.0-SEER.
The RLS3H systems are packed with features specifically created to save you money – like Energy Saving Program, or ESP, a programmable remote control and inverter technology.
Wi-Fi enabled systems such as the RLS3Y and RLS3YH series can be controlled from anywhere using the FGLair app on a mobile device.
Dimensions
Width: 23.6 inches (600 mm)
Height: 61.8 inches (1,570 mm)
Depth: 25.2 inches (640 mm)
Weight** 236 lbs (107 kg)
Gas Type Natural Gas, Propane with conversion kit
Maximum Heating Capacity 78,000 BTU (23 kW)
Minimum Input 17,000 BTU (5 kW)
Maximum Input 85,000 BTU (25 kW)
Maximum Input (Heating) 85,000 BTU (25 kW)
Turn Down Ratio 5:1
DHW Activation Rate 0 Gallon/Minute (0 Liter/Minute)
Maximum DHW at 75°F ?141 Gallon/First Hour***
Maximum DHW at 41.7°C 534 Liter/First Hour***
AFUE Rating95.4%
Circulating PumpModulating
Storage Capacity 24 Gallons (90 L)
Approved Venting Material Polypropylene, Stainless Steel, PVC, CPVC
Warranty 12-year on heat exchanger, 12-year on tank, 2-year on parts, 1-year on labor
CertificationsEnergy Star®, CSA, NB, IBR, ASME, H
Included in the Box
Dimensions
Width: 26 inches (660 mm)
Height: 26.8 inches (680 mm)
Depth: 15.2 inches (385 mm)
Weight** 141 lbs (64 kg)
Gas Type Natural Gas or Propane, field convertible
Maximum Heating Capacity 189,000 BTU (55 kW)
Minimum Input
Natural Gas: 41,000 BTU (12 kW)
Propane: 74,000 BTU (22 kW)
Maximum Input 205,000 BTU (60 kW)
Maximum Input (Heating) 205,000 BTU (60 kW)
Turn Down Ratio 5:1
DHW Activation Rate ?Indirect Tank Compatible
Maximum DHW at 75°F ?Indirect Tank Compatible
Maximum DHW at 41.7°C ?Indirect Tank Compatible
AFUE Rating 95.0%
Circulation Pump Modulating
Storage Capacity N/A
Approved Venting Material Polypropylene, Stainless Steel, PVC, CPVC
Warranty
Standard Warranty (some restrictions apply):
Residential: 12-year on heat exchanger, 2-year on parts, 1-year on labor
Commercial: 5-year on heat exchanger, 2-year on parts, 1-year on labor
Certifications Energy Star®, CSA, NB, IBR, ASME, H
Included in the Box
Dimensions
Width: 39.4 inches (1,000 mm)
Height: 26.8 inches (680 mm)
Depth: 15.2 (385 mm)
Shipping Weight 196 lbs (89 kg)
Gas Type ?Natural Gas or Propane, field convertible
Maximum Heating Capacity ?161,000 (47 kW)
Minimum Input
Natural Gas: 35,000 BTU (10 kW)
Propane: 74,000 BTU (22 kW)
Maximum Input (Heating) 175,000 BTU (51 kW)
Turn Down Ratio 5:1
DHW Activation Rate 0 Gallon/Minute (0 Liter/Minute)
Maximum DHW at 75°F 4.1 Gallon/Minute
Maximum DHW at 41.7°C 15.5 Liter/Minute
AFUE Rating 95.0%
Circulating Pump Modulating
Storage Capacity 6.6 Gallons (25 L)
Approved Venting Material Polypropylene, Stainless Steel, PVC, CPVC
Warranty
Standard Warranty (some restrictions apply):
Residential: 12-year on heat exchanger, 2-year on parts, 1-year on
labor
Commercial: 5-year on heat exchanger, 2-year on parts, 1-year on
labor
Certifications Energy Star®, CSA, NB, IBR, ASME, H
Included in the Box
Dimensions
Width: 19.7 inches (500 mm)
Height: 25.6 inches (650 mm)
Depth: 15.6 inches (395 mm)
Weight 101 lbs (46 kg)
Gas Type Natural Gas or Propane, field convertible
Minimum Input
Natural Gas: 26,000 BTU (8 kW)
Propane: 59,000 BTU (17 kW)
Maximum Input 130,000 BTU (38 kW)
Maximum Input (Heating) 110,000 BTU (32 kW)
Turn Down Ratio 5:1
DHW Activation Rate 0.39 Gallon/Minute (1.84 Liter/Minute)
Maximum DHW at 75°F 3.2 Gallon/Minute
Maximum DHW at 41.7°C 12.1 Liter/Minute
AFUE Rating 95.5%
Circulating Pump Single Speed
Storage Capacity N/A
Approved Venting Material ?Polypropylene, Stainless Steel, PVC, CPVC
Warranty
Standard Warranty (some restrictions apply):
Residential: 12-year on heat exchanger, 2-year on parts, 1-year on labor
Certifications Energy Star®, CSA, NB, IBR, ASME, H
Included in the Box
Dimensions
Width: 19.7 inches (500 mm)
Height: 25.6 inches (650 mm)
Depth: 15.6 inches (395 mm)
Weight 91 lbs (41.3 kg)
Gas Type Natural Gas, Propane with conversion kit
Maximum Heating Capacity 47,000 BTU (13.8 kW)
Minimum Input 13,000 BTU (3.8 kW)
Maximum Input 85,000 BTU (25 kW)
Maximum Input (Heating) 50,000 BTU (15 kW)
Turn Down Ratio 6.25:1
DHW Activation Rate 0.39 Gallon/Minute (1.84 Liter/Minute)
Maximum DHW at 75°F 2.1 Gallon/Minute
Maximum DHW at 41.7°C 7.9 Liter/Minute
AFUE 95.6%
Circulating Pump Single Speed
Storage Capacity N/A
Approved Venting Material
Polypropylene, Stainless Steel, PVC, CPVC
Standard Warranty (some restrictions apply):
Warranty
Residential: 12-year on heat exchanger, 2-year on parts, 1-year on labor
Commercial: 5-year on heat exchanger, 2-year on parts, 1-year on labor
CertificationsCSA, NB, H
Included in the Box
Series: LX Series
Configuration: Single-Stage Compressor
Parts Warranty: 10-Year Parts Limited Warranty *
Other Warranty: 10-Year Compressor Limited Warranty
Capacity: 1.5 – 5 Tons
Efficiency Rating: 13 SEER
*Must be registered online within 90 days of installation. Otherwise the parts warranty reverts to a 5-year parts limited warranty.
Series: Latitude™ Series
Configuration: Multi-position
Height: 33-inches High
Fan Motor: PSC Fan Motor with Single-Stage Burner
Parts Warranty: 10-Year Parts Limited Warranty *
Other Warranty: Lifetime Heat Exchanger Limited Warranty **
Capacity: 40 – 130 MBH
Efficiency Rating: Up to 95.5% AFUE
* Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
** Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
Series: LX Series
Configuration: Multi-position
Height: 33-inches High
Fan Motor: ECM Fan Motor with Two-Stage Burner
Parts Warranty: 10-Year Parts Limited Warranty *
Other Warranty: Lifetime Heat Exchanger Limited Warranty **
Capacity: 60 – 120 MBH Input
* Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
** Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
Series: LX Series
Configuration: Multi-position
Height: 33-inches High
Fan Motor: Standard ECM Fan Motor with Single-Stage Burner
Parts Warranty: 10-Year Parts Limited Warranty *
Other Warranty: Lifetime Heat Exchanger Limited Warranty **
Capacity: 40 – 120 MBH input
Efficiency Rating: Up to 95% AFUE
* Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
** Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
Series: LX Series
Configuration: Multi-position
Height: 33-inches High
Fan Motor: ECM Fan Motor with Two-Stage Burner
Parts Warranty: 10-Year Parts Limited Warranty *
Other Warranty: Lifetime Heat Exchanger Limited Warranty **
Capacity: 40 – 120 MBH input
Efficiency Rating: Up to 96% AFUE
* Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
** Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
Series: LX Series
Configuration: Multi-position
Height: 33-inches High
Fan Motor: PSC Fan Motor with Modulating Burner
Parts Warranty: 10-Year Parts Limited Warranty *
Other Warranty: Lifetime Heat Exchanger Limited Warranty **
Capacity: 60 – 120 MBH Input
Efficiency Rating: Up to 97% AFUE
* Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
** Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
Series: Affinity&trade Series
Configuration: Multi-position
Control: ClimaTrak&trade Comfort System
Height: 33-inches High
Fan Motor: Variable Speed ECM Blower Motor with Modulating Burner
Parts Warranty: 10-Year Parts Limited Warranty *
Other Warranty: Lifetime Heat Exchanger Limited Warranty **
Capacity: 60 – 120 MBH Input
Efficiency Rating: 80% AFUE
* Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
** Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
Series: Affinity&trade Series
Configuration: Multi-position
Control: ClimaTrak&trade Comfort System
Height: 33-inches High
Fan Motor: Variable Speed ECM Blower Motor with Modulating Burner
Parts Warranty: 10-Year Parts Limited Warranty *
Other Warranty: Lifetime Heat Exchanger Limited Warranty **
Capacity: 60 – 120 MBH Input
Efficiency Rating: Up to 98% AFUE
* Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
** Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
Ceiling Mounted Single Zone products offered by LG Air Conditioning Technologies for Residential and Light Commercial applications.
Multi Zone systems provide air conditioning for two, three, four and up to eight separate zones.
A variety of outdoor units include in the MAX series are available for any application; systems can be configured with all non-ducted, all ducted, or with both non-ducted and ducted indoor units.
The Continental CBL46 Linear Gas Fireplace will blend seamlessly with your decor, or stand out as a stunning focal point. This fireplace is perfect for smaller spaces. A standard Topaz CRYSTALINE™ ember bed shimmers with a modern look, but can be customized with the Beach Fire, Shore Fire, or Mineral Rock enhancement kits. You can even mix and match for an even more unique style. Meeting today’s stringent safety standards, the Continental CBL46 comes with safety screens so families stay safe and cozy. Complete your space today with a fireplace as unique as your home.
This 27-inch Built-in Electric Fireplace Insert will easily fit anywhere in the home. Installation is effortless, simply plug and play. Featuring a realistic, hand painted log set and a lifelike glowing ember bed, you just simply plug it in for instant ambiance. Control the heat in a space up to 400 sq.ft with the convenient remote control, there is even a timer function to set for up to six hours. The traditional look of the Continental CEFB27H-3A, 27-inch Built-in Electric Fireplace Insert is a wonderful addition to any space.
This 29-inch Built-in Electric Fireplace Insert will easily fit anywhere in the home. Installation is effortless, simply plug and play, meaning there is no expensive remodeling needed. Featuring a realistic, hand painted log set and a lifelike glowing ember bed, you just simply plug it in for instant ambiance. The convenient remote control will manage the 4 heat setting and the warmth in spaces up to 400 sq.ft., including a timer function to set up for up to six hours. The traditional look of the Continental CEFB29H-3A, 29-inch Built-in Electric Fireplace Insert fits seamlessly with any living space.
Series: LX Series
Configuration: Multi-position
Height: 33-inches High
Fan Motor: Variable-Speed Premium ECM Fan Motor with Two-Stage Burner
Parts Warranty: 10-Year Parts Limited Warranty *
Other Warranty: Lifetime Heat Exchanger Limited Warranty **
Capacity: 40 – 120 MBH input
Efficiency Rating: Up to 96% AFUE
*Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
**Must be registered online within 90 days of installation. If not registered within 90 days, the parts warranty reverts to a 5-year limited warranty and the heat exchanger warranty reverts to a 20-year limited warranty.
